IPTC011N08NM5
  • IPTC011N08NM5

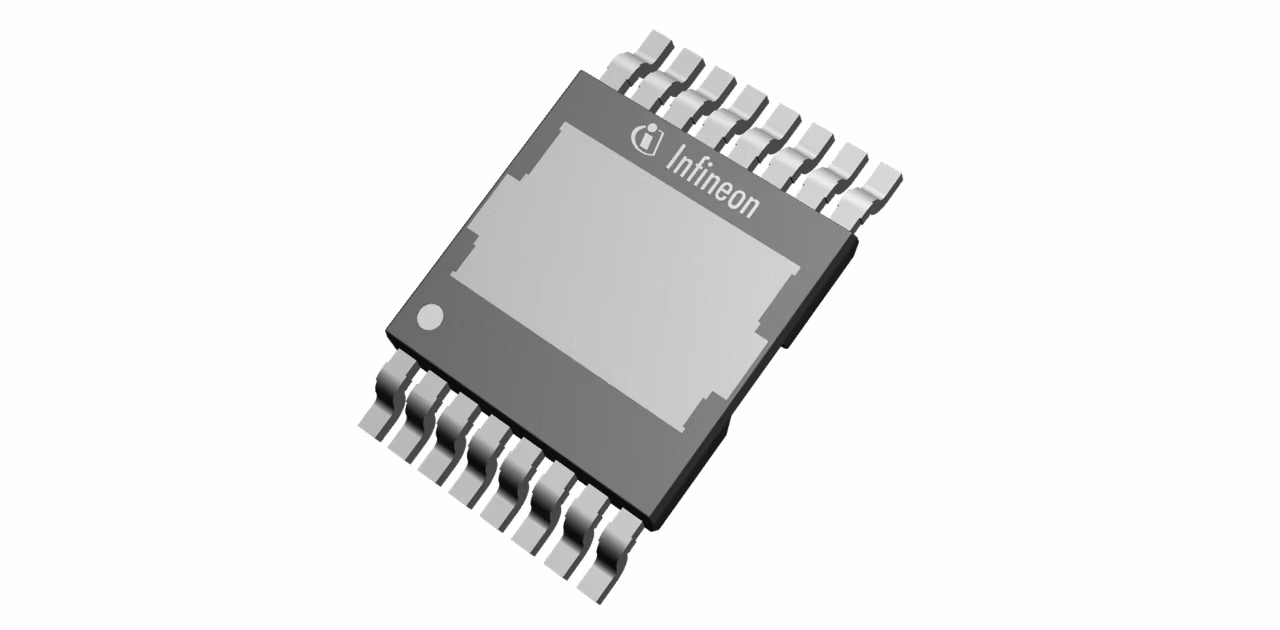

IPTC011N08NM5

Active and preferred

IPTC011N08NM5 is part of the OptiMOS™ 5 power MOSFET in TOLT family: the TO-Leaded top-side cooling package for superior thermal performance. This innovative package combined with the key features of OptiMOS™ 5 technology allows best-in-class products in 80 V as well as high current rating > 300 A for high-power density designs.

Infineon Technologies IPTC011N08NM5 Product Info

16 April 2026 0

Parameters

Battery voltage

36-48 V

Budgetary Price €/1k

2.25

ID (@25°C) max

408 A

IDpuls max

1632 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLT (HDSOP-16)

Polarity

N

Ptot max

375 W

QG (typ @10V)

178 nC

RDS (on) (@10V) max

1.1 mΩ

VDS max

80 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Features

  • Low RDS(on)
  • High current rating >300 A
  • Top-side cooling
  • Negative stand-off
  • Sn-free exposed pad
0

Description

  • Efficiency for Extended Battery Life
  • High power density
  • Superior thermal performance
  • Saving in cooling system
  • Minimized thermal resistance to heatsink
