IDWD40E65E7
  • IDWD40E65E7

IDWD40E65E7

Active and preferred

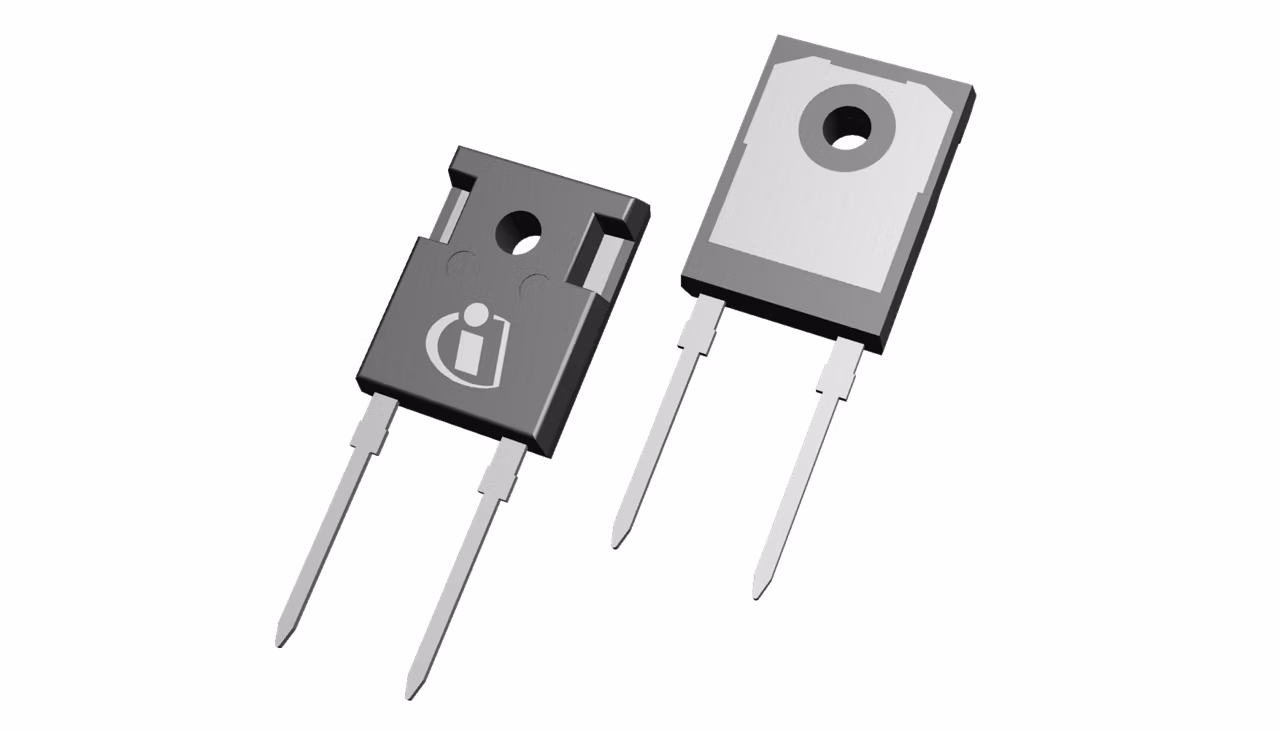

Soft-switching 650 V, 40 A emitter controlled 7 silicon diode in TO-247 real to leads 2pin package with improved softness, humidity ruggedness and reliability for Indutrial and Home appliance application.

Infineon Technologies IDWD40E65E7 Product Info

16 April 2026 0

Parameters

Configuration

Single

I(FSM) max

149 A

IF max

50 A

IF

49 A

IR max

20 µA

Irrm

15.69 A

Mounting

THT

Operating Temperature range

-40 °C to 175 °C

Package

TO-247

Ptot max

159 W

Qrr

0.86 µC

RthJC max

0.946 K/W

trr

89 ns

VF

1.65 V

VF max

2.1 V

Voltage Class max

650 V

Apps

Microinverter solutions, Residential air conditioning, Uninterruptible power supplies (UPS), Online UPS

Features

  • Low and temperature stable VF
  • Very soft and fast recovery behavior
  • Low reverse recovery current (Irrm)
  • HV-H3TRB pass by Jedec Standard
  • Cosmic ray ruggedness
  • Maximum junction temperature 175°C
  • Qualified according to JEDEC

Description

  • High efficiency system
  • Maximize system output power
  • Optimized performance
  • Humidity robustness
