IDWD30E65E7
  • IDWD30E65E7

IDWD30E65E7

Active and preferred

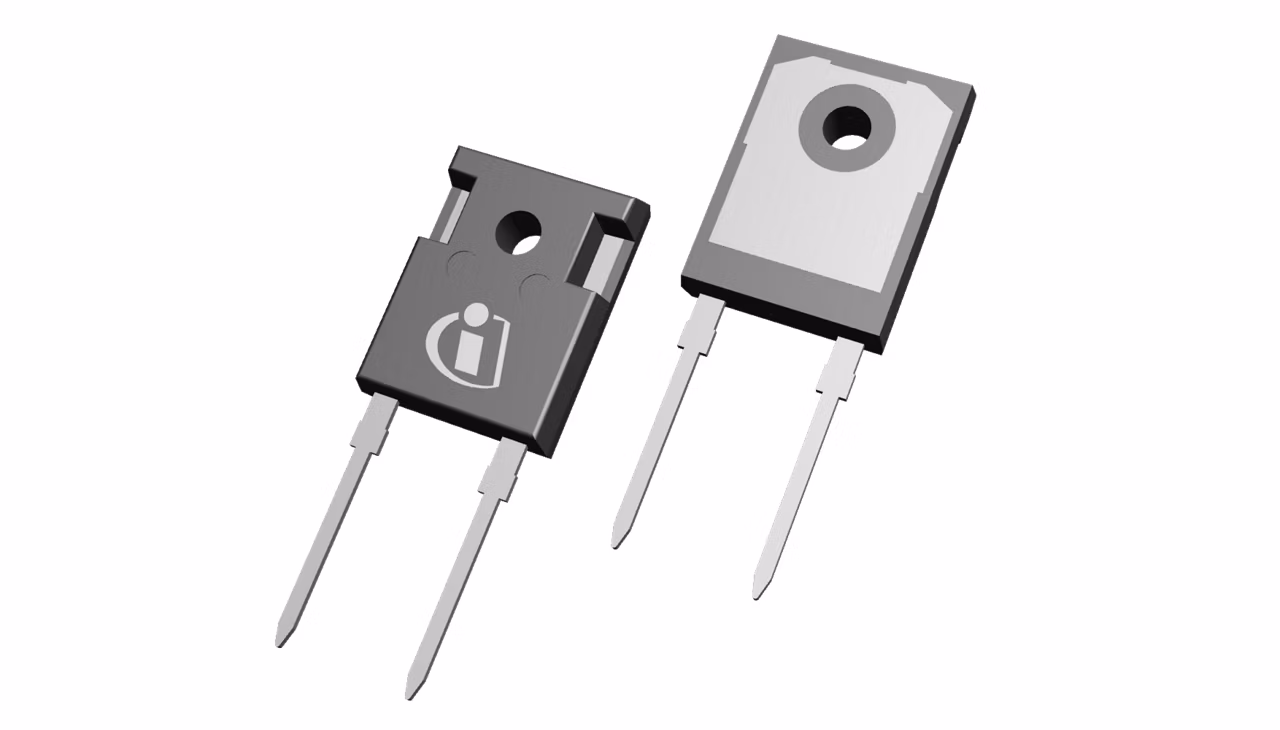

Soft-switching 650 V, 30 A emitter controlled 7 silicon diode in TO-247 real to leads 2pin package with improved softness, humidity ruggedness and reliability for Indutrial and Home appliance application.

Infineon Technologies IDWD30E65E7 Product Info

16 April 2026 10

Parameters

Configuration

Single

I(FSM) max

126 A

IF max

50 A

IF

36 A

IR max

20 µA

Irrm

13.72 A

Mounting

THT

Operating Temperature range

-40 °C to 175 °C

Package

TO-247

Ptot max

131 W

Qrr

0.62 µC

RthJC max

1.144 K/W

trr

82 ns

VF

1.65 V

VF max

2.1 V

Voltage Class max

650 V

Apps

Microinverter solutions, Residential air conditioning, Uninterruptible power supplies (UPS), Online UPS

Features

  • Low and temperature stable VF
  • Very soft and fast recovery behavior
  • Low reverse recovery current (Irrm)
  • HV-H3TRB pass by Jedec Standard
  • Cosmic ray ruggedness
  • Maximum junction temperature 175°C
  • Qualified according to JEDEC

Description

  • High efficiency system
  • Maximize system output power
  • Optimized performance
  • Humidity robustness
