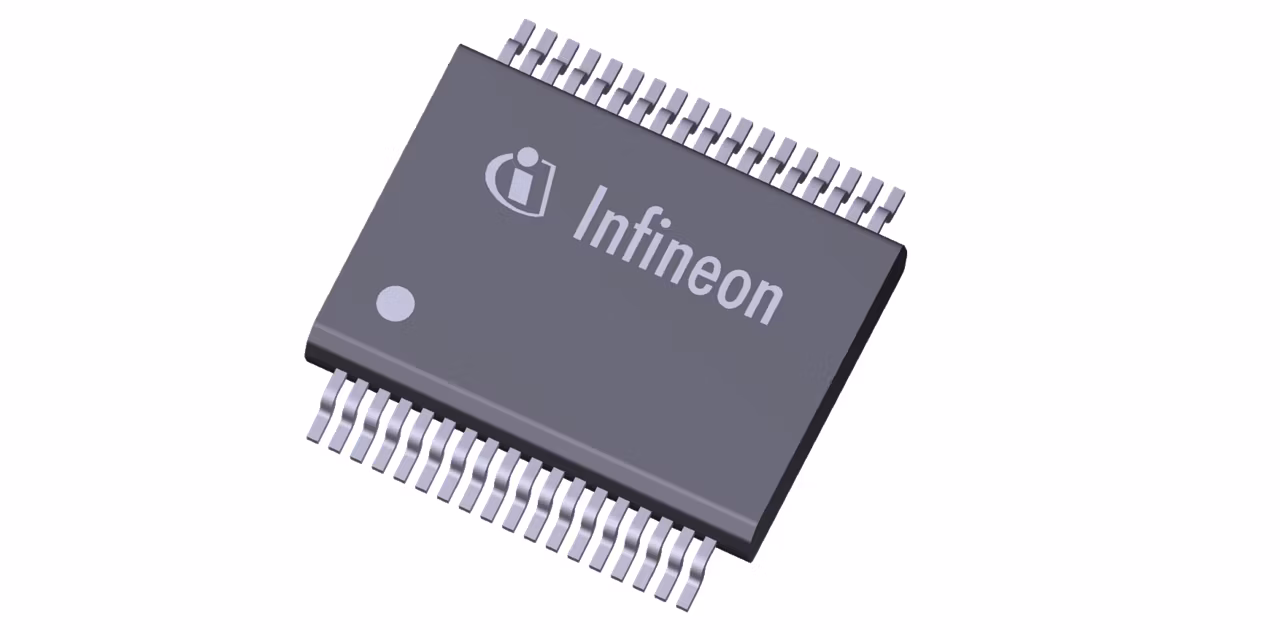

1EDI3040AS
  • 1EDI3040AS

1EDI3040AS

Active and preferred

EiceDRIVER™ 1EDI3040AS is reinforced isolated using Infineon’s coreless transformer technology and is perfectly suited for the next generation SiC & IGBT traction inverters. Advanced features like slew rate control and a flyback controller including on-the-fly adjustability offer optimization potential to maximize inverter performance and efficiency. It is an ISO26262 ASIL D compliant fitting to cost optimized system safety concepts.

Infineon Technologies 1EDI3040AS Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Family

EiceDRIVER™ isolated gate driver ICs for EV

Input Vcc range

4.5 V to 5.5 V

Isolation Type

Galvanic isolation – Reinforced

Output Current (Sink)

20 A

Output Current (Source)

20 A

Package

Compact LFDSO-36 fine pitch package

Qualification

Automotive

Turn Off Propagation Delay

60 ns

Turn On Propagation Delay

60 ns

Voltage Class

1200 V

Features

  • For IGBTs/SiC-MOSFETs
  • Integrated SPI functionality
  • CMTI > 150 V/ns
  • 8 kV reinforced insulation (DIN VDE)
  • Multi level slew rate control
  • Split output drive stage
  • Closed loop flyback controller (2%)
  • Runtime VCC2 adjustability
  • 6 channel 11- bit ADC
  • DESAT with digital filtering for < 1μs
  • Power device state monitoring
  • ISO26262 ASIL D compliant

Description

  • Compensated VDS measurement
  • Sensorless SiC Tj estimation
  • Rds-on life-time monitoring
  • DESAT detection fitting next Gen SiC
  • Inverter loss reduction in partial load
  • Boost mode for deadtime reduction
  • Integrated flyback saving BOM
  • Active VGS control to optimize Rds-on
  • ASIL D compliant safety mechanisms
  • Easy FMEDA analysis
  • AEC-Q100 qualified
  • Compact LFDSO-36 fine pitch package
