TLE9350BSJ
  • TLE9350BSJ

TLE9350BSJ

Active and preferred

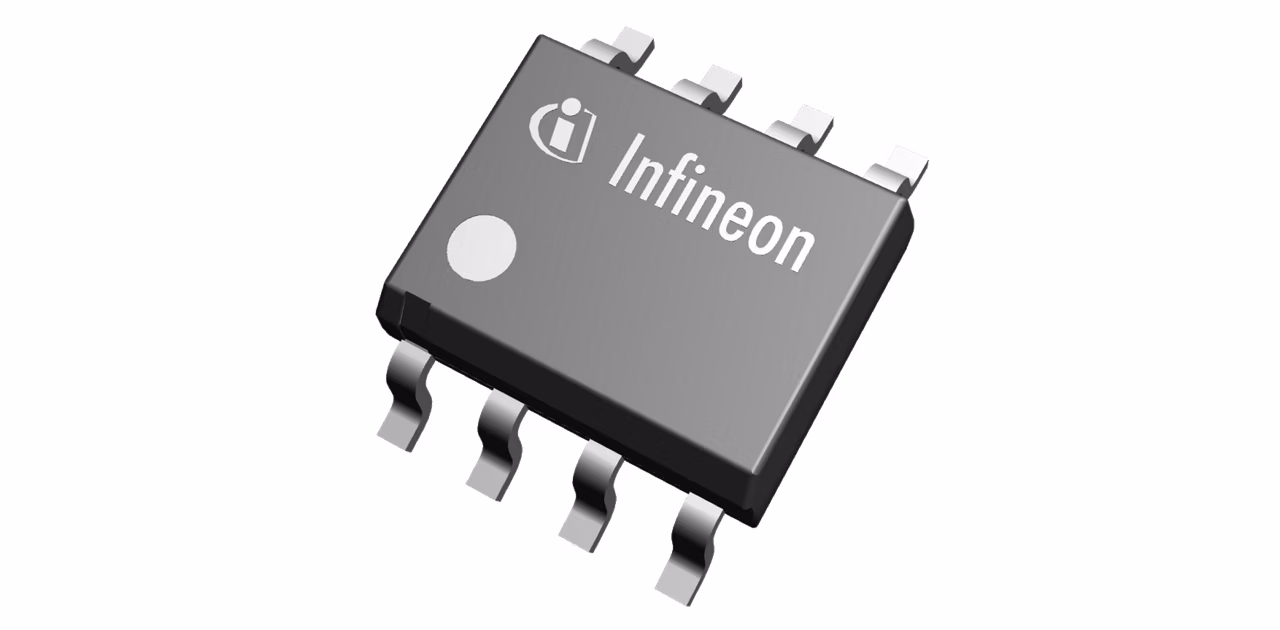

The TLE9350BSJ is a high speed CAN transceiver, used in HS CAN systems for automotive applications as well as for industrial applications. It is designed to fulfill the requirements of ISO 11898-2:2016 physical layer specification as well as SAE J1939 and SAE J2284. The TLE9350BSJ is available in a RoHS compliant, halogen free PG-DSO-8 package.

Infineon Technologies TLE9350BSJ Product Info

16 April 2026 0

Parameters

Additional Features

higher mission profile

Bus Wake-Up Capability

No

Family

CAN FD 5MBit/s

Language

IBIS

Planned to be available until at least

2039

Quiescent Current

<18µA @5V STB

Standards

ISO 11898-2:2016, SAE J2284-4/-7

Transmission Rate max

5 MBit/s

Features

  • Fully compliant to ISO 11898-2:2016 and SAE J2284-4/-5
  • Loop delay symmetry for CAN FD data frames up to 5 Mbit/s
  • Very low electromagnetic emission (EME) allows the use without
    • additional common mode choke
  • Excellent ESD robustness
  • TxD timeout function
  • Very low CAN bus leakage current in power-down state
  • Overtemperature protection
  • Protected against automotive transients according to ISO 7637 and SAE J2962-2

Description

  • low current consumption thanks to power safe, receive only mode and very low leakage current in power-down
  • excellent ESD robustness allowing use without any additional protection devices
