IAUC40N08S5L140
  • IAUC40N08S5L140

IAUC40N08S5L140

Active and preferred

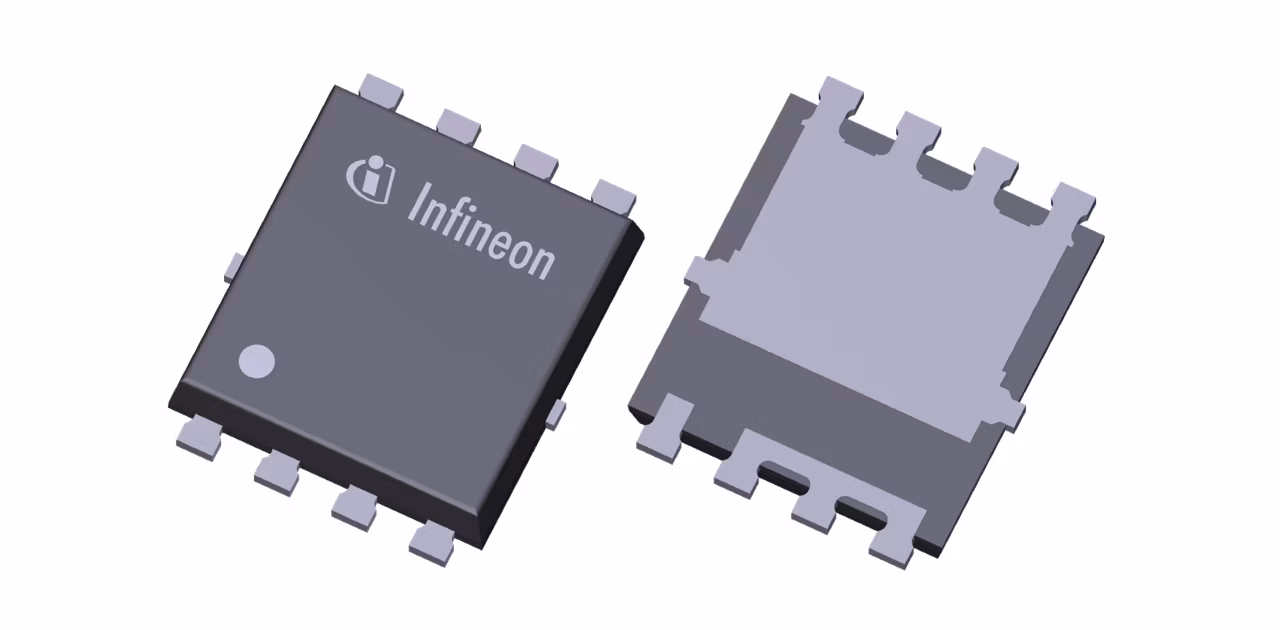

The IAUC40N08S5L140 is a 14mΩ 80V MOSFET in a 5x6 SSO8 package, using Infineon's leading OptiMOS™-5 technology. Next to others it is used in LED lighting and wireless chargers.

Infineon Technologies IAUC40N08S5L140 Product Info

16 April 2026 0

Parameters

Country of Assembly (Last BE site, current, subject to change)

Malaysia

Country of Diffusion (Last FE site, current, subject to change)

Austria, Germany

ID (@25°C) max

40 A

Launch year

2021

Operating Temperature range

-55 °C to 175 °C

Package

PG-TDSON-8

Planned to be available until at least

2038

Polarity

N

QG (typ @10V) max

18.6 nC

QG (typ @10V)

14.3 nC

Qualification

Automotive

RDS (on) (@10V) max

14 mΩ

Technology

OptiMOS™5

VDS max

80 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.6 V

Apps

Domain controller for ADAS & autonomous driving, Automotive LED lighting systems, Full LED headlight system - multi-channel LED driver

Features

  • OptiMOS™ 5 power MOSFET
  • N-channel-Enhancement mode-Logic Level
  • AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green Product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device
