IPT019N08N5
  • IPT019N08N5

IPT019N08N5

Active and preferred

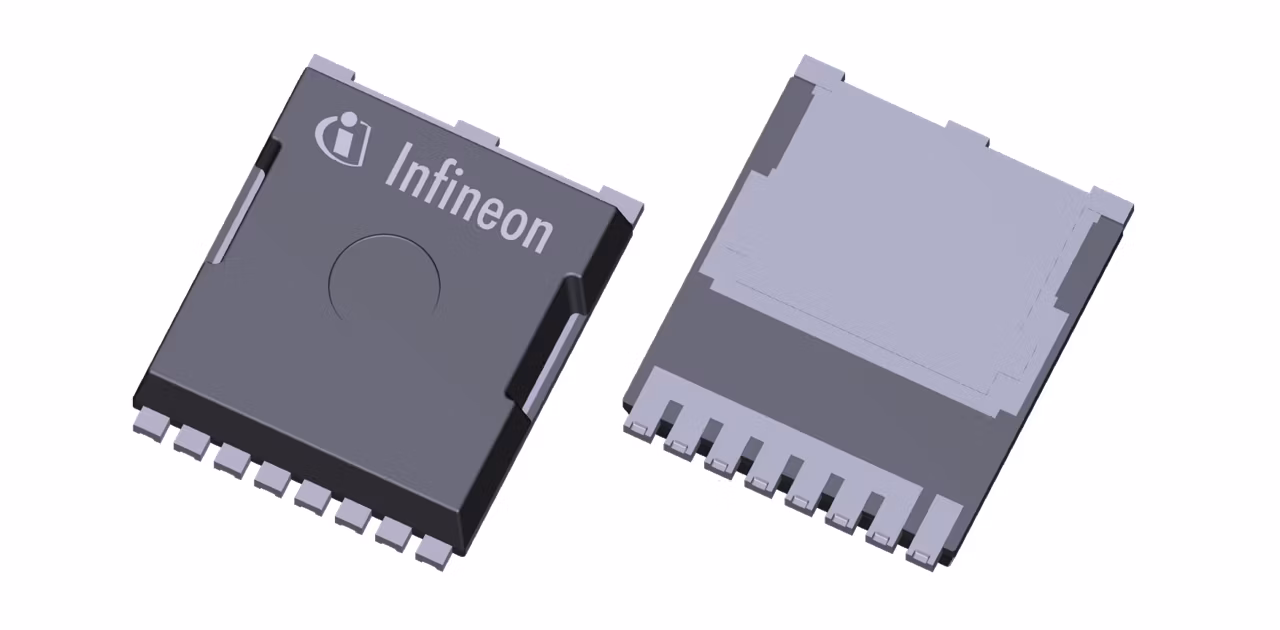

Infineon’s OptiMOS™ 5 80V n-channel power MOSFET IPT019N08N5 in TO-Leadless package is ideally suited for high switching frequencies. This package is especially designed for high current applications such as forklift, light electric vehicles (LEV), POL (point-of-load) and telecom. With a 60% space reduction compared to D2PAK 7pin package, TO-Leadless (TOLL) is the perfect solution where highest efficiency, outstanding EMI behavior as well as best thermal behavior and space reduction are required.

Infineon Technologies IPT019N08N5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.43

ID (@25°C) max

247 A

ID (@ TC=25°C) max

247 A

IDpuls max

988 A

Operating Temperature range

-55 °C to 175 °C

Package

TOLL (HSOF-8)

Pin Count

8 Pins

Polarity

N

Ptot max

231 W

QG (typ @10V)

101 nC

RDS (on) (@10V) max

1.9 mΩ

VDS max

80 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Apps

Medium voltage IBC (48 V), Light electric vehicle solutions, Medium voltage (MV) drive, 1-phase string inverter solutions

Features

  • Optimized for synchronous rectification
  • Ideal for high switching frequency
  • Capacitance reduction of up to 44%
  • 43% lower Rds(on) vs. previous gen

Description

  • Highest system efficiency
  • Reduced switching and conduction losses
  • Less paralleling required
  • Increased power density
  • Low voltage overshoot
