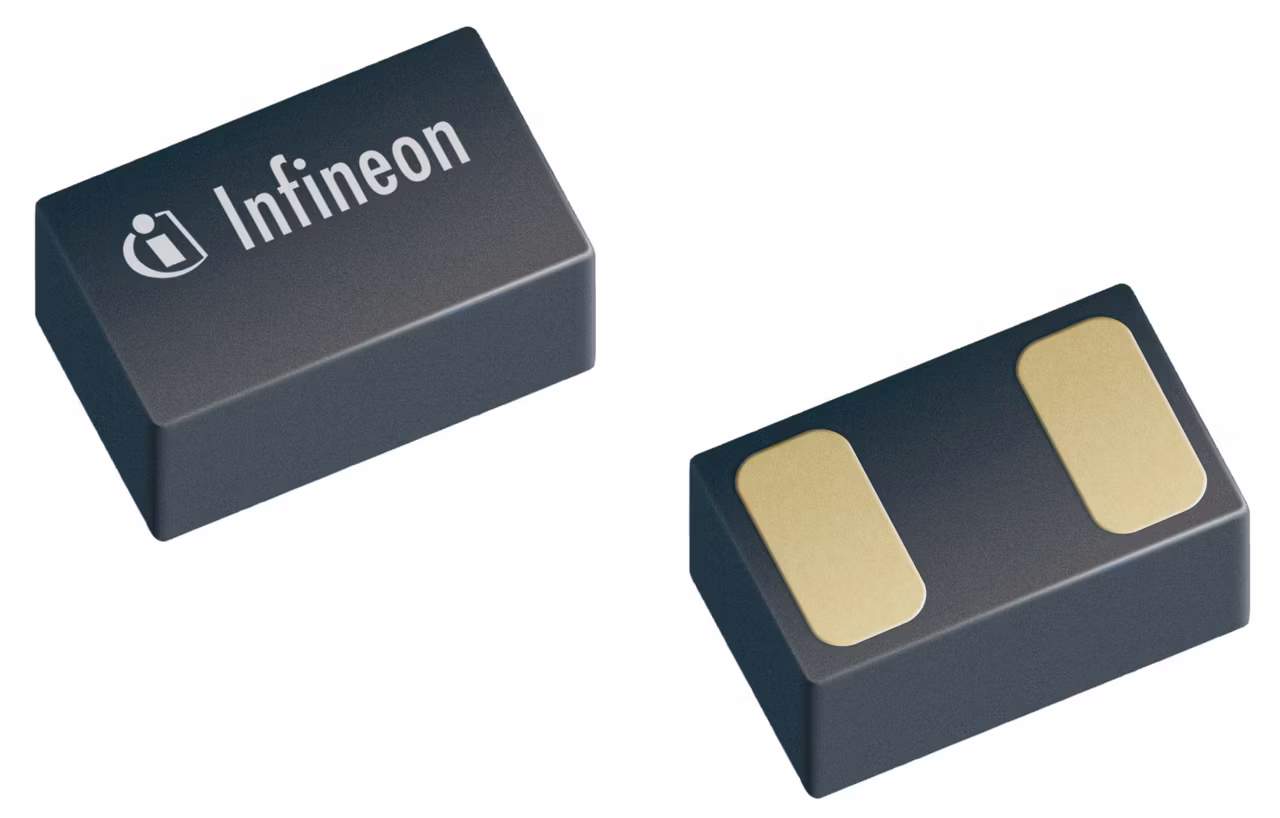

ESD204-B1-02EL
  • ESD204-B1-02EL

ESD204-B1-02EL

Low Capacitance Bi-directional ESD / Transient Protection Diode

Infineon Technologies ESD204-B1-02EL Product Info

16 April 2026 0

Parameters

CL max

7 pF

CL

4 pF

Green

RoHS compliant, Halogen free

IEFT

40A

IPP

1A

IR max

50 nA

IR

1 nA

Protected Lines

1

Rdyn (reverse)

0 GΩ

Rdyn (forward)

0 GΩ

VESD range

-18 kV to 18 kV

VWM range

-8 V to 14 V

Features

  • ESD / transient protection according to:
    – IEC61000-4-2 (ESD): ±20 kV (air/contact discharge)
    – IEC61000-4-4 (EFT): 40 A (5/50 ns)
  • Bi-directional, working voltage up to VRWM = -8 / +14 V max.
  • Low capacitance: CL = 4 pF (typical)
  • Low reverse current. IR = 50nA (max.)
  • Pb-free (RoHS compliant) and halogen free package
