BSC074N15NS5
  • BSC074N15NS5

BSC074N15NS5

Active and preferred

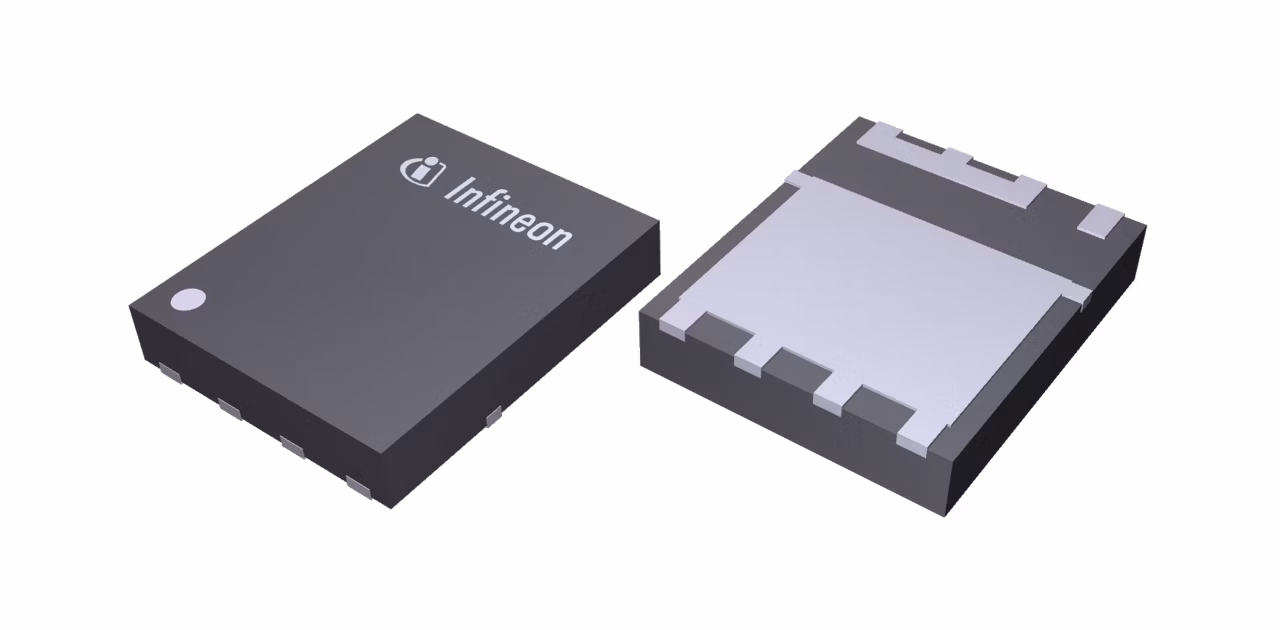

Infineon's OptiMOS™ MOSFETs in SuperSO8 package extend OptiMOS™ 3 and 5 product portfolio and enable higher power density in addition to improved robustness, responding to the need for lower system cost and increased performance. Low reverse recovery charge (Qrr) improves the system reliability by providing a significant reduction of voltage overshoot, which minimizes the need for snubber circuits, resulting in less engineering cost and effort.

Infineon Technologies BSC074N15NS5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.72

ID (@25°C) max

114 A

IDpuls max

456 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6

Pin Count

8 Pins

Polarity

N

Ptot max

214 W

QG (typ @10V)

41 nC

RDS (on) (@10V) max

7.4 mΩ

Special Features

Fused leads

VDS max

150 V

VGS(th) range

3 V to 4.6 V

VGS(th)

3.8 V

Apps

Medium voltage IBC (48 V), Telecommunications infrastructure, DIN rail power supply solutions, General purpose motor drive
