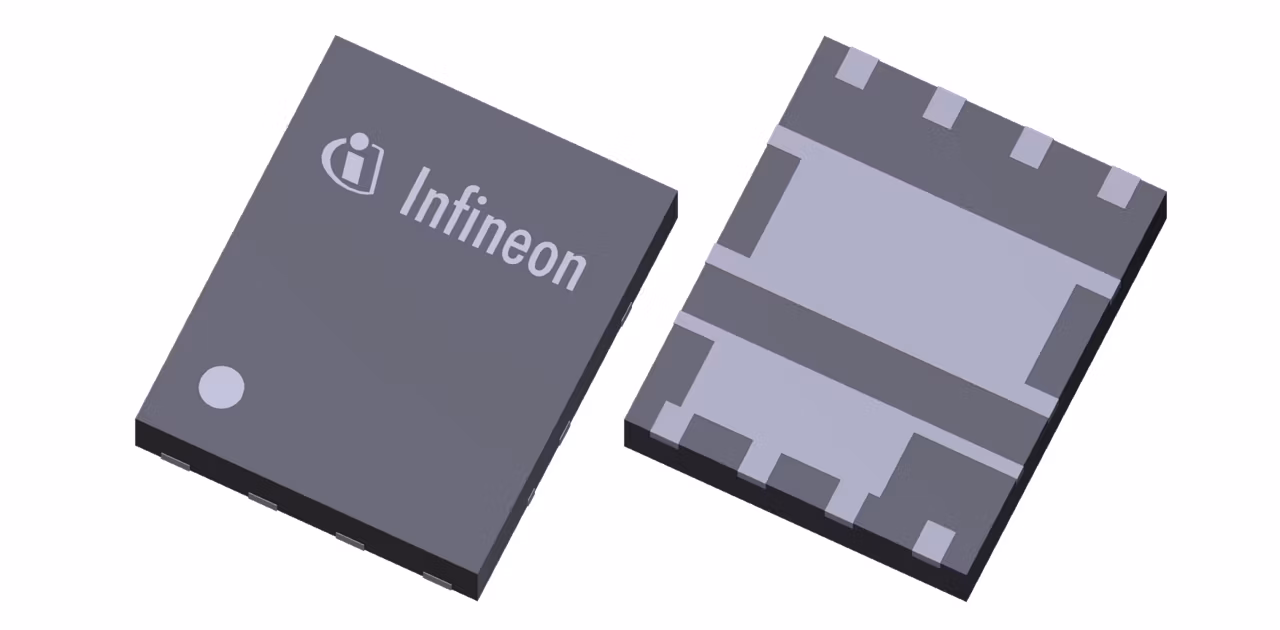

BSC0924NDI
  • BSC0924NDI

BSC0924NDI

Active and preferred

Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Infineon Technologies BSC0924NDI Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.34

Ciss

870 pF, 1100 pF

Coss

460 pF, 330 pF

ID (@25°C) max

10 A, 13 A

IDpuls max

160 A

Operating Temperature range

-55 °C to 150 °C

Package

Asymmetrical Dual 5x6

Polarity

N

Ptot max

2.5 W, 2.5 W

QG (typ @4.5V)

6.7 nC, 8.5 nC

RDS (on) (@4.5V LL) max

7 mΩ, 5.2 mΩ

RDS (on) (@10V) max

3.7 mΩ, 5 mΩ

RDS (on) (@4.5V) max

5.2 mΩ, 7 mΩ

Rth

4.2 K/W, 3.4 K/W

Special Features

Logic Level, Monolithically Integrated Schottky-like Diode

VDS max

30 V, 30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.85 V

Apps

Medium voltage IBC (48 V)

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance
  • Easy to design-in

Description

  • Increased battery lifetime
  • Improved EMI makes ext snubbers obsolete
  • Saving costs
  • Space saving
  • Reducing power losses
