CYUSB4024-FCAXIT
  • CYUSB4024-FCAXIT

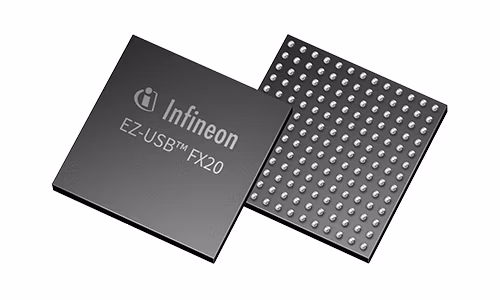

CYUSB4024-FCAXIT

Active and preferred

Infineon's EZ-USB™ FX20 solution extends the legacy of EZ-USB™ FX3, the industry’s gold standard for USB peripheral controller, to the next level with the latest ultra-fast USB 20Gbps and LVDS interfaces increasing the total bandwidth up to 550% of its predecessor (17.6 Gbps vs 3.2 Gbps).

Infineon Technologies CYUSB4024-FCAXIT Product Info

16 April 2026 0

Parameters

Applications

Industrial cameras, High-bandwidth instruments, Machine Vision, 3D scanners, Medical imaging sensors

Family

EZ-USB™ FX20

Flash

512 kByte

LVCMOS

Y

LVDS

Y

Operating Temperature range

-40 °C to 85 °C

Operating Voltage range

1.7 V to 3.6 V

Package Type

169-ball FBGA

Peak Reflow Temp

260 °C

Processor Type

ARM® Cortex® M4/M0+

Product Category

3.2 Peripheral Controllers

Product Description

USB 3.2 Gen 2x2 USB 20 Gbps Peripheral Controller

Security Features

Y

Software Tools

ModusToolbox™

SRAM

1024 kByte

Temperature grade

Industrial

USB Speed

20 GBit/s

USB Standard

USB 3.2 Gen 2x2

Apps

Industrial automation, Machine vision

Features

  • USB 3.2 Gen 2x2 device port
  • USB-C orientation detection/correction
  • Dual-core ARM® Cortex® M4F/M0+ CPU
  • Integrated 512 KB flash
  • 1024 KB buffer memory
  • 16-lane LVDS interface @1.25 Gbps/lane
  • 32-bit LVCMOS interface @160MHz DDR
  • 2x Quad-SPI (QSPI)
  • 7 serial communication blocks
  • USB full-speed device debug port
  • 2x I2S/PDM-PCM and GPIOs
  • Cryptography accelerator

Description

  • USB 20 Gbps performance
  • Up to 5-meter USB passive cable support
  • Smaller PCB footprint
  • Optimized BOM cost
  • No need for high-speed signal mux
  • Integrated flashQuick start development
  • USB Video Class, UVC, firmware ready
  • USB3 Vision firmware ready
  • Application notes for HW SW
