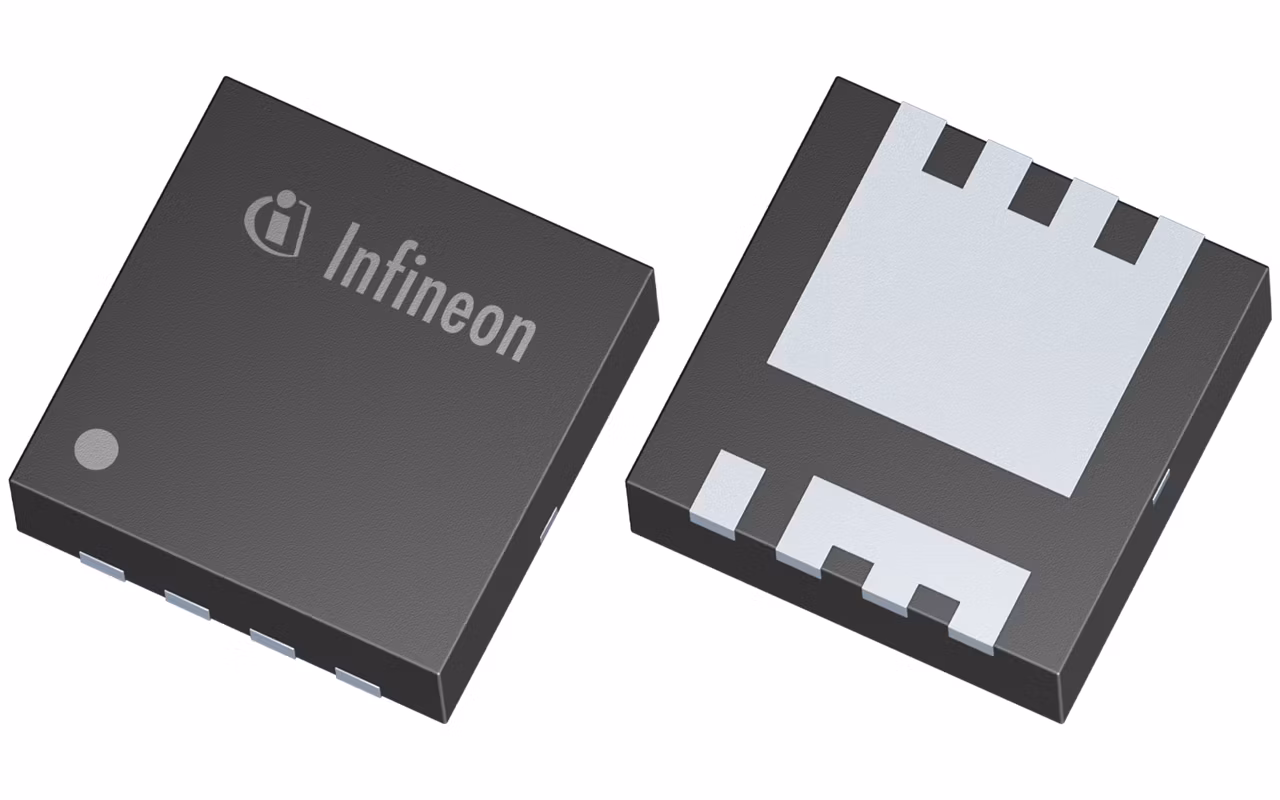

BSZ0901NS
  • BSZ0901NS

BSZ0901NS

Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Infineon Technologies BSZ0901NS Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.39

Ciss

2850 pF

Coss

970 pF

ID (@25°C) max

145 A

IDpuls max

580 A

Operating Temperature range

-55 °C to 150 °C

Package

PQFN 3.3 x 3.3

Polarity

N

Ptot max

50 W

QG (typ @10V)

45 nC

QG (typ @4.5V)

23 nC

RDS (on) (@10V) max

2 mΩ

RDS (on) (@4.5V) max

2.6 mΩ

RDS (on) (@4.5V LL) max

2.6 mΩ

Rth

2.5 K/W

VDS max

30 V

VGS(th) range

1.2 V to 2 V

VGS(th)

1.52 V

Apps

Cordless power tools and outdoor power equipment

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance
  • Easy to design-in

Description

  • Increased battery lifetime
  • Improved EMI behavior
  • Saving costs
  • Space saving
  • Reducing power losses
