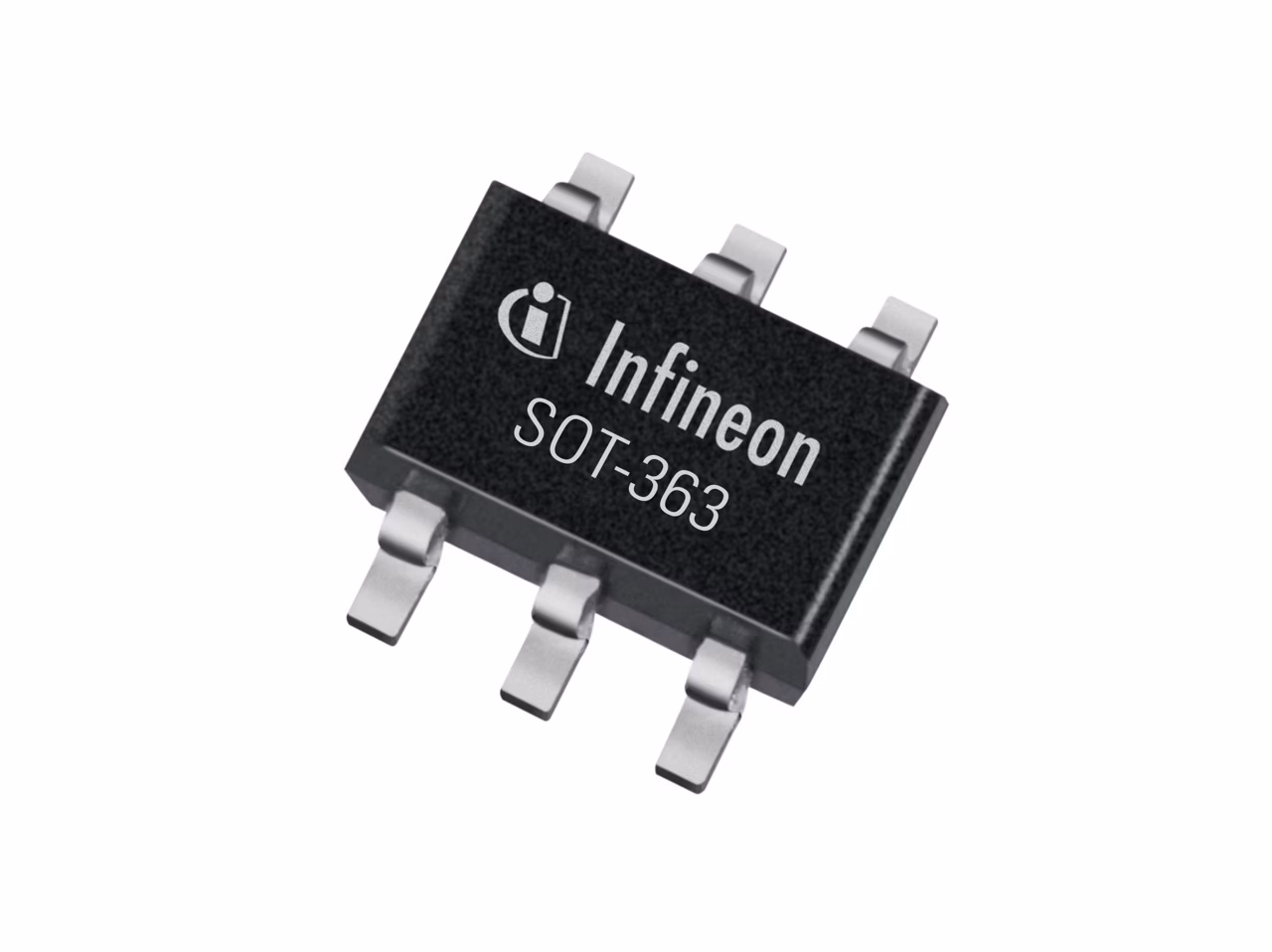

BSD235N

Active and preferred

Infineon technologies offers automotive and industrial manufacturers a broad portfolio of N and P-Channel Small Signal MOSFETs that meet and exceed the highest quality requirements in well-known industry standard packages. With unmatched levels of reliability and manufacturing capacity these components are ideally suited for a wide variety of applications including LED lighting, ADAS, body control units, SMPS and motor control.

Infineon Technologies BSD235N Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k	0.06
Ciss	49 pF
Coss	23 pF
ID (@25°C) max	0.95 A
IDpuls max	3.8 A
Operating Temperature max	150 °C
Operating Temperature min	-55 °C
Package	SOT-363
Polarity	N+N
Ptot max	0.5 W
QG (typ @4.5V) max	0.32 nC
RDS (on) (@4.5V) max	350 mΩ
RDS (on) max	600 mΩ
RDS (on) (@4.5V LL) max	350 mΩ
RDS (on) (@2.5V) max	600 mΩ
RthJA max	250 K/W
Special Features	Dual
VDS max	20 V
VGS(th) range	0.7 V to 1.2 V
VGS(th)	0.95 V

Apps

Medium voltage IBC (48 V), Automotive secondary power distribution unit, DC-DC converter high-voltage, Telecommunications infrastructure, Mobile device and smartphone solutions

Features

Enhancement mode
Super logic level
Avalanche rated
Fast switching
dv/dt rated

Pb-free lead-plating

RoHS compliant, halogen-free

Qualified according to Automotive Std

PPAP capable

Description

Low RDS(on) for high efficency
Small packages save PCB space
Best-in-class quality & reliability
