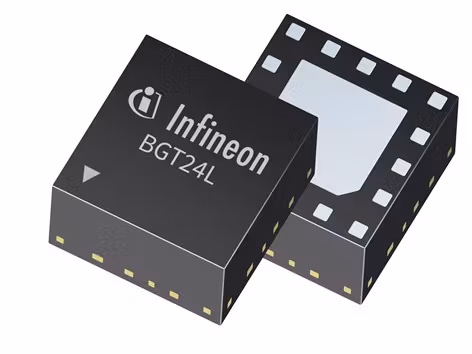

BGT24LTR11N16
  • BGT24LTR11N16

BGT24LTR11N16

Active and preferred

The BGT24LTR11 is a Silicon Germanium transceiver MMIC designed for signal generation and reception in the 24-24.25 GHz ISM band. Optimized for doppler-radar applications, it maintains the transmit signal within the ISM band without the need for an external PLL. Additionally, it can be used in other types of radar, such as FMCW or FSK. Its compact design and robust performance make it an ideal solution for a wide range of radar applications.

Infineon Technologies BGT24LTR11N16 Product Info

16 April 2026 0

Parameters

Antenna

External

Current Consumption

45 mA

Direction of Motion

Yes

Family

24 GHz radar sensors

Frequency range

24 GHz to 24.25 GHz

Gain

20 dB

Max Detection Range

20 m

Min Detection Range

0.1 m

Motion

Yes

NF

10 dB

Number of Rx Antennas

1

Number of Tx Antennas

1

Qualification

Industrial (JEDEC20/22)

Range

yes

Speed [m/s]

Yes

Supply Voltage

3.3 V

Target Application

Smart Building, Lighting systems, Security systems, UAVs, HVAC, Smart Home

Temperature Range

-40 to + 85°C

Apps

Consumer electronics, Multicopters and drones, Robotics, Domestic robots

Features

  • 24GHz transceiver MMIC
  • Fully integrated low phase noise VCO
  • Built in temperature compensation circuit for VCO stabilization
  • Low power consumption
  • Fully ESD protected device
  • Single ended RF and IF terminals
  • 200GHz bipolar SiGe:C technology B7HF200
  • Single supply voltage 3.3V
