TLS810B1LD V50
  • TLS810B1LD V50

TLS810B1LD V50

Active and preferred

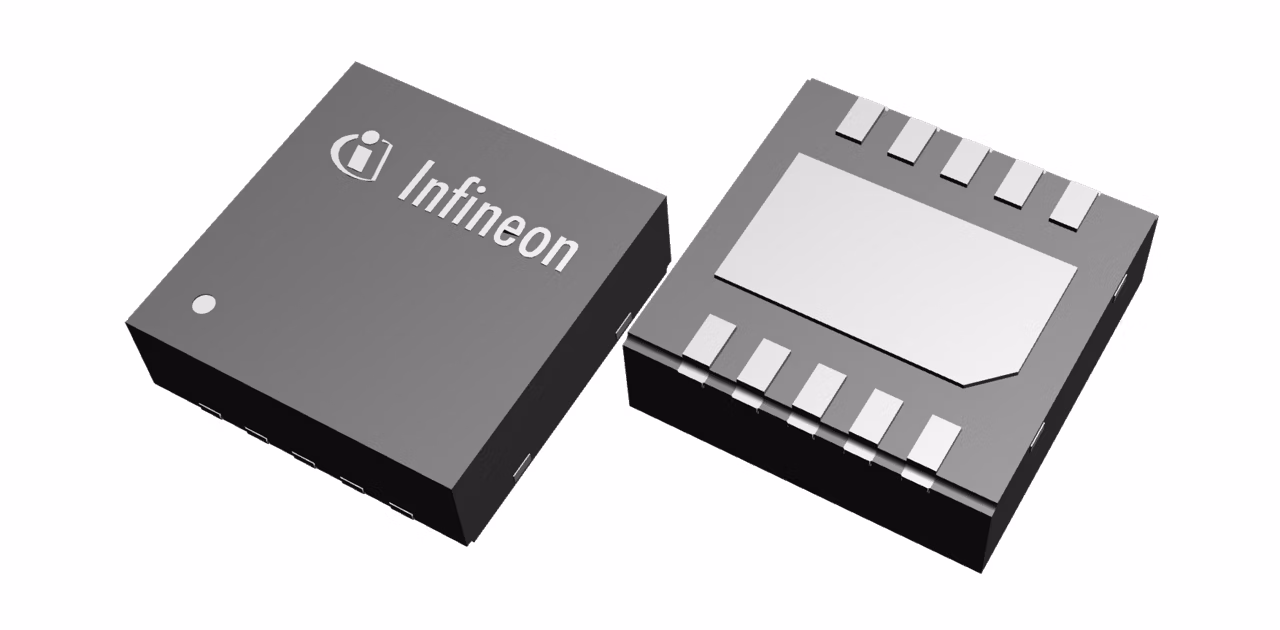

New in 3.3mm * 3.3mm TSON10 automotive package, TLS810B1LDV50 is a low quiescent current regulator. With input range of 2.75V to 42V, it's ideal for automotive applications. 5.0V output, 2% accuracy, and 100mA current capability. Requires just 1μF ceramic capacitor. Enable feature for on/off control, consuming <1μA. Suitable for systems during cranking. Includes internal protection for current limitation and overtemperature shutdown.

Infineon Technologies TLS810B1LD V50 Product Info

16 April 2026 0

Parameters

Accuracy

2 %

Base Product

TLS810B1xx

Dropout Voltage

200 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear High Performance

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.75 V to 42 V

Output Current max

100 mA

Output Voltage Type

5.0 V

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

5.5 µA

Regulator Type

High Performance

Reset

No

Status Output

No

Watchdog

No

Apps

Automotive secondary power distribution unit, Automotive body control module (BCM), Seat control module

Features

  • Wide Input Voltage Range: 2.75V to 42 V
  • 100 mA Current Capability
  • Fixed Output: 5V
  • Ultra Low Quiescent Current: 5.5μA
  • Low Dropout Voltage: 250 mV @ 100mA
  • Enable feature
  • Stable with 1μF Output Capacitor
  • Stable Aluminium,Tantalum or Ceramic
  • Output Current Limit Protection
  • Overtemperature Protection
  • PG-TSON-10 package

Description

  • Automotive-grade:Robust & Cost-Effective
  • Optimized 1µF ceramic output capacitance
  • Save energy with ultra-low standby.
