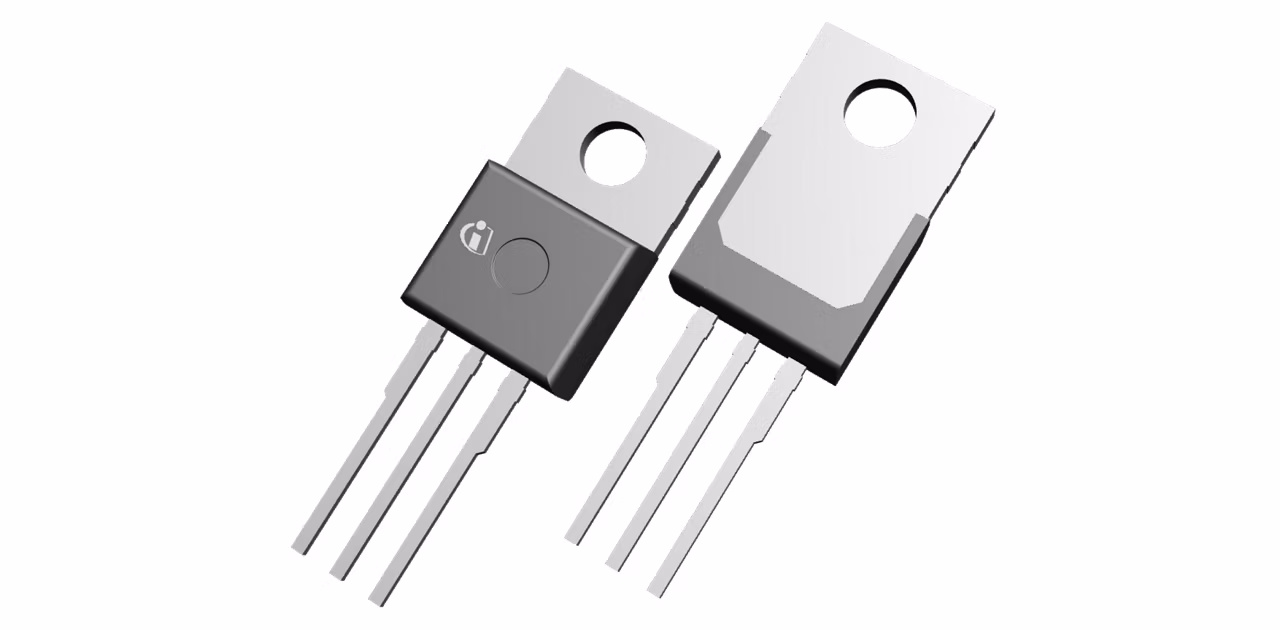

AIKP20N60CT
  • AIKP20N60CT

AIKP20N60CT

Infineon's Discrete IGBT TRENCHSTOP™ and Fieldstop technology for 600V Automotive applications offers very tight parameter distribution, high ruggedness, temperature stable behavior and very high switching speed.

Infineon Technologies AIKP20N60CT Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.41

Co-pack diode technology

EMCON3

Eoff (Soft Switching)

0.46 mJ

Eoff (Hard Switching)

0.6 mJ

Eon

0.31 mJ

IC (@ 100°) max

20 A

IC (@ 25° ) max

40 A

ICpuls max

60 A

IF max

40 A

IFpuls max

60 A

Irrm

13.3 A

Launch year

2017

Package

TO-220-3

Planned to be available until at least

2033

Ptot max

156 W

QGate

120 nC

Qrr

310 nC

Reflow Solderable

No

Switching Frequency

0-30 KHz

td(off)

199 ns

td(on)

18 ns

Technology

IGBT TRENCHSTOP™

tf

42 ns

tr

14 ns

Type

IGBT + Diode

VCE(sat)

1.5 V

VCE max

600 V

VF

1.65 V

Voltage Class max

600 V

Features

  • Very low V CEsat1.5V (typ.)
  • Maximum junction temperature 175°C
  • Short circuit withstand time 5µs
  • Positive temp coefficient in V Cesat
  • Low EMI
  • Low gate charge
  • Soft, fast recovery Emitter HE diode
