6ED2742S01Q
  • 6ED2742S01Q

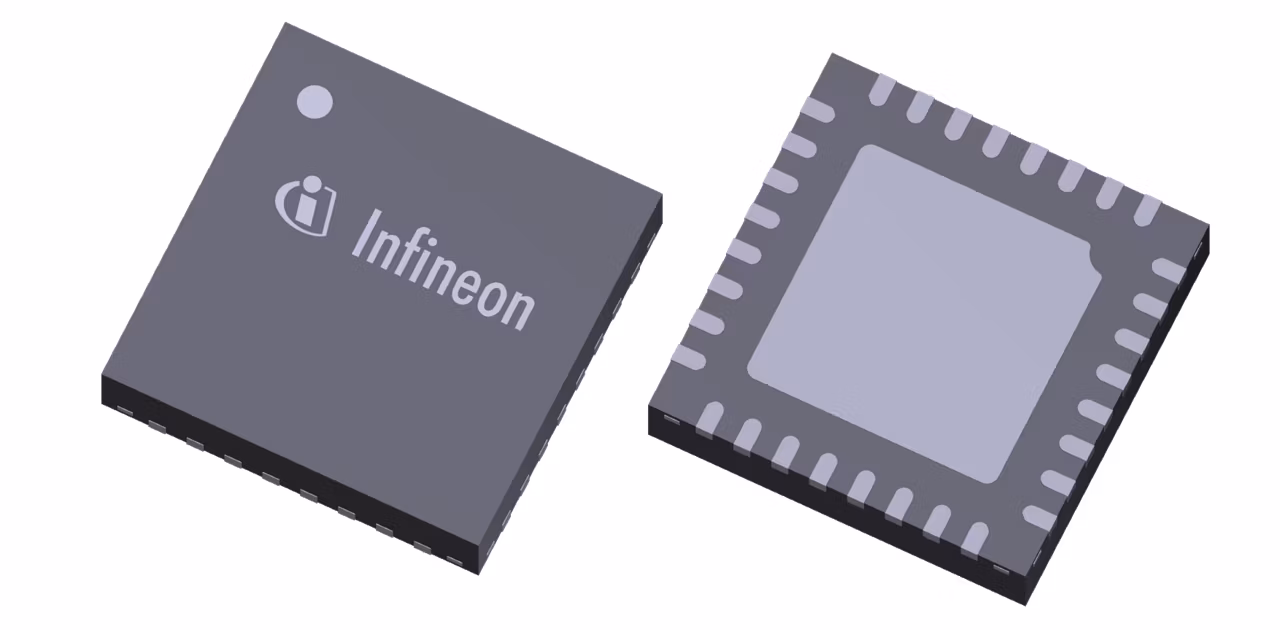

6ED2742S01Q

The MOTIX™ 6ED2742S01Q is a 160 V SOI based gate driver for 3-phase BLDC motor drive applications. Integrated bootstrap diodes are used to supply the three external high sides charging bootstrap capacitors and supports 100% duty cycle operation by a trickle charge pump. Protection features include under voltage lockout, over current protection with configurable threshold, fault communication and automatic fault clear.

Infineon Technologies 6ED2742S01Q Product Info

16 April 2026 0

Parameters

Channels

6

Configuration

3-Phase

Fall Time

10 ns

Input Vcc range

9 V to 18 V

Isolation Type

Functional levelshift SOI (Silicon On Insulator)

Marketing Priority

74

Operating Voltage range

5 V to 140 V

Output Current (Sink)

2 A

Output Current (Source)

1 A

Output Vbs max

20 V

Package

QFN32

Qualification

Industrial

Rise Time

20 ns

Switch Type

MOSFET

Technology

MOTIX™ Driver

Temperature

- 40°C - 125°C

Turn Off Propagation Delay

100 ns

Turn On Propagation Delay

100 ns

VBS UVLO (Off)

4.5 V

VBS UVLO (On)

5 V

VCC UVLO (On)

7.5 V

VCC UVLO (Off)

6.8 V

Voltage Class

160 V

Apps

Light electric vehicle solutions, Multicopters and drones, Cordless power tools and outdoor power equipment, Robotics, Domestic robots

Features

  • Bootstrap volt. (VB node) of +160 V
  • Floating channel for bootstrap op.
  • Integrated power management unit
  • Integrated current sense amplifier
  • Integrated over-current protection
  • 100% duty cycle operation
  • Integrated ultra-fast boot. diodes
  • Independent under voltage lockout
  • Integrated shoot-through protection
  • Multi-function RFE pin
  • Schmitt trigger inputs
  • 3.3 V, 5 V input logic compatible
