TLE94004EP
  • TLE94004EP

TLE94004EP

Active and preferred

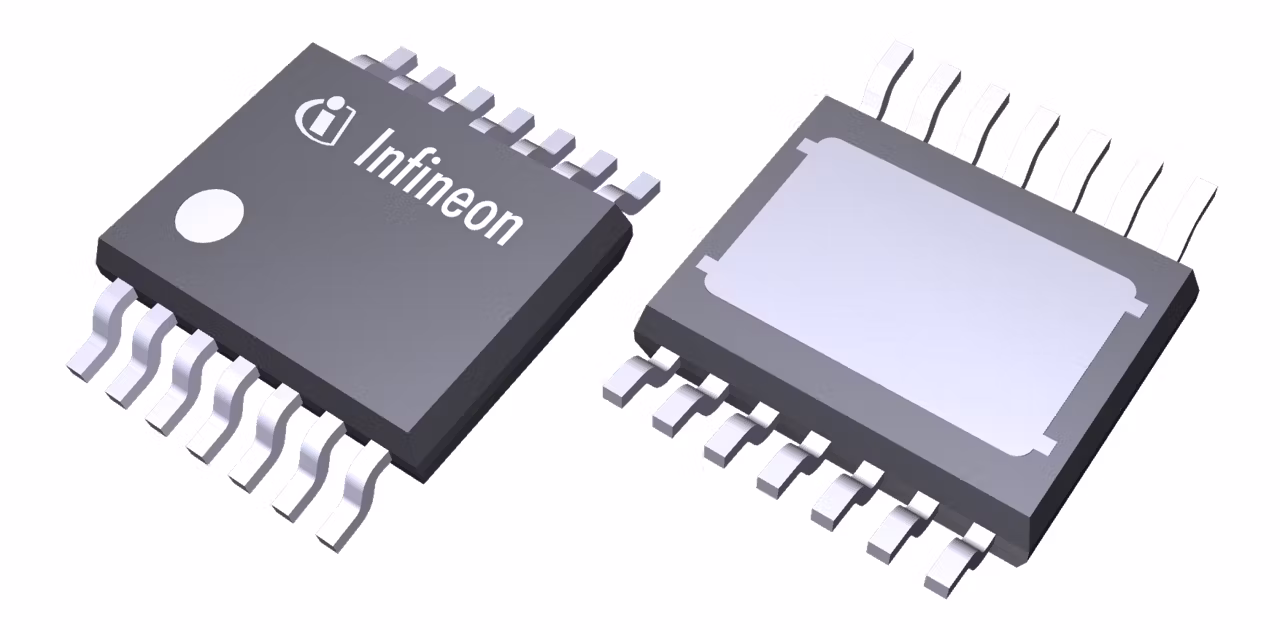

Our family of half-bridge drivers ranges from 3 to 12 outputs, supporting direct interface or SPI. Drive DC motor loads sequentially or in parallel forward, reverse, brake, or high impedance modes. Features include short circuit, power supply failure, and overtemperature detection. Ideal for automotive applications with low quiescent current. Compact PG-TSDSO-14 package ensures excellent thermal performance, saving space and reducing costs.

Infineon Technologies TLE94004EP Product Info

16 April 2026 0

Parameters

Classification

QM

MCU

No

Over current detection min

0.9 A

Planned to be available until at least

2037

Power Stage

Yes

Qualification

Automotive

RDSON_H(typ)

850 mΩ

RDSON_L(typ)

850 mΩ

Supply Voltage absolute max ratings

40 V

Apps

Automotive, Automotive body control module (BCM), Automotive battery management system (BMS) - high-voltage

Features

  • Four half-bridges
  • Integrated output stages
  • PWM capability
  • 16-bit DI for control and diagnosis
  • Voltage supply range: 5.5–20 V
  • Short circuit protection
  • Overtemperature protection
  • Cross-current protection

Description

  • No external MOSFETS needed
  • Low power consumption in sleep mode
  • Control/diagnos.of outputs via SPI or DI
  • Driving schemes for up to 3 motors
  • Independently diagnosable outputs
