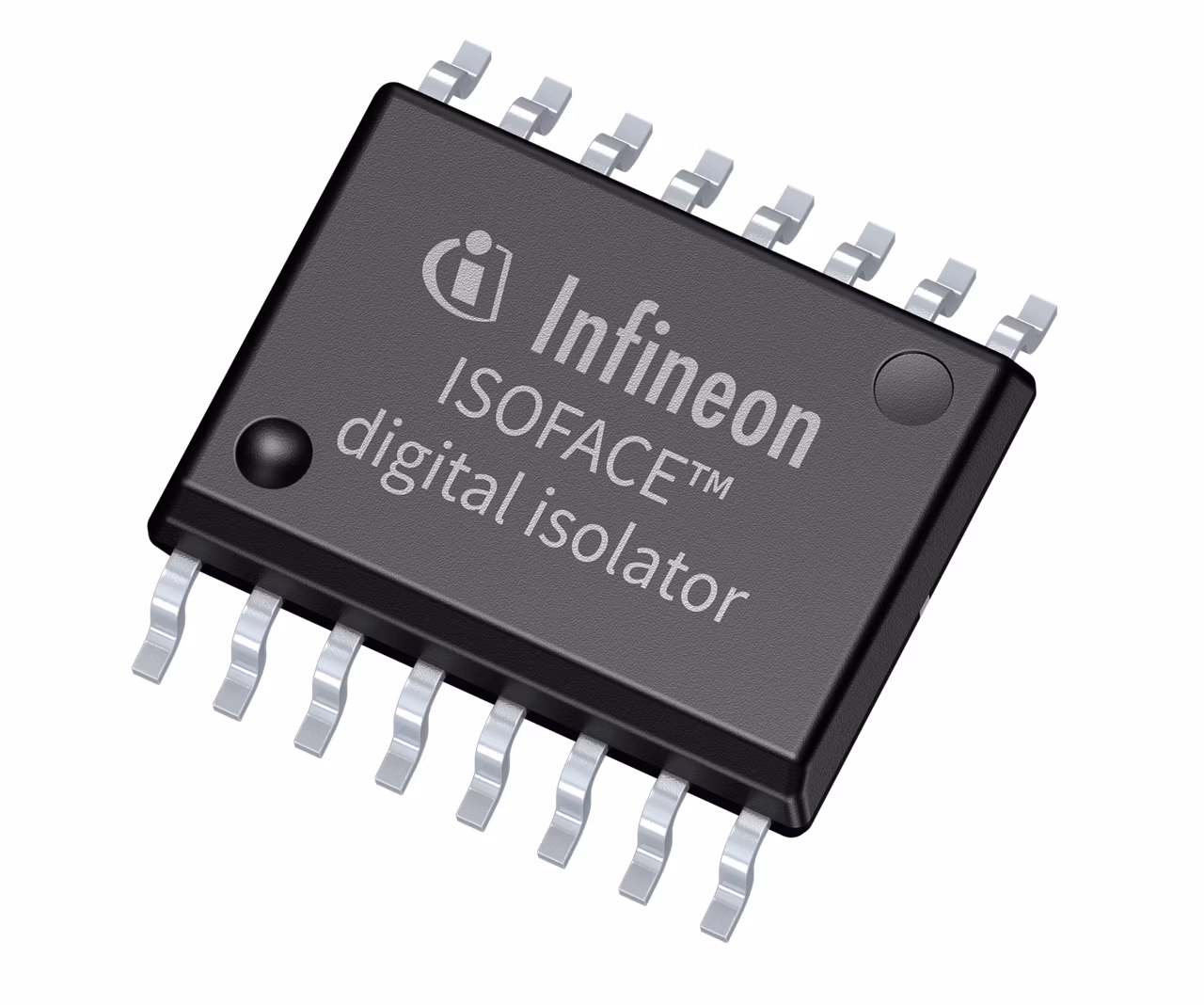

4DIR2400HA
  • 4DIR2400HA

4DIR2400HA

The 4DIR2400HA (with 2 forward channels) is AEC-Q100 qualified and provides robust reinforced isolation for high-voltage automotive applications. Four data channels allow for simplified and high-power density designs and improve system efficiency with low power consumption. With a wide supply voltage range, active-high output enable, and default low output state, it is a perfect fit for SMPS applications in automotive where reinforced isolation is required.

Infineon Technologies 4DIR2400HA Product Info

16 April 2026 0

Parameters

Channel Configuration

2+2

CMTI kV/µs

100

Data Rate

40 Mbps

Default output state

Low

Output enable

Active High

Viso

5700 V

Vout Isolated supply voltage range

2.5 V to 6.5 V

Apps

On-board charging (OBC), Home appliances

Features

  • Data rates up to 40 Mbps
  • Supply voltage: 2.7 V – 6.5 V
  • VISOof 5700VRMS
  • Low current consumption 6.4 mA @ 1 Mbps
  • CMTI: 100 kV/µs (min)
  • Operating temperature: -40 to 125°C

Description

  • High immunity against system noise
  • Higher system efficiency
  • Reliable high default output state
  • Simplified system certification
  • Easy device replacement
  • Alternative sourcing
