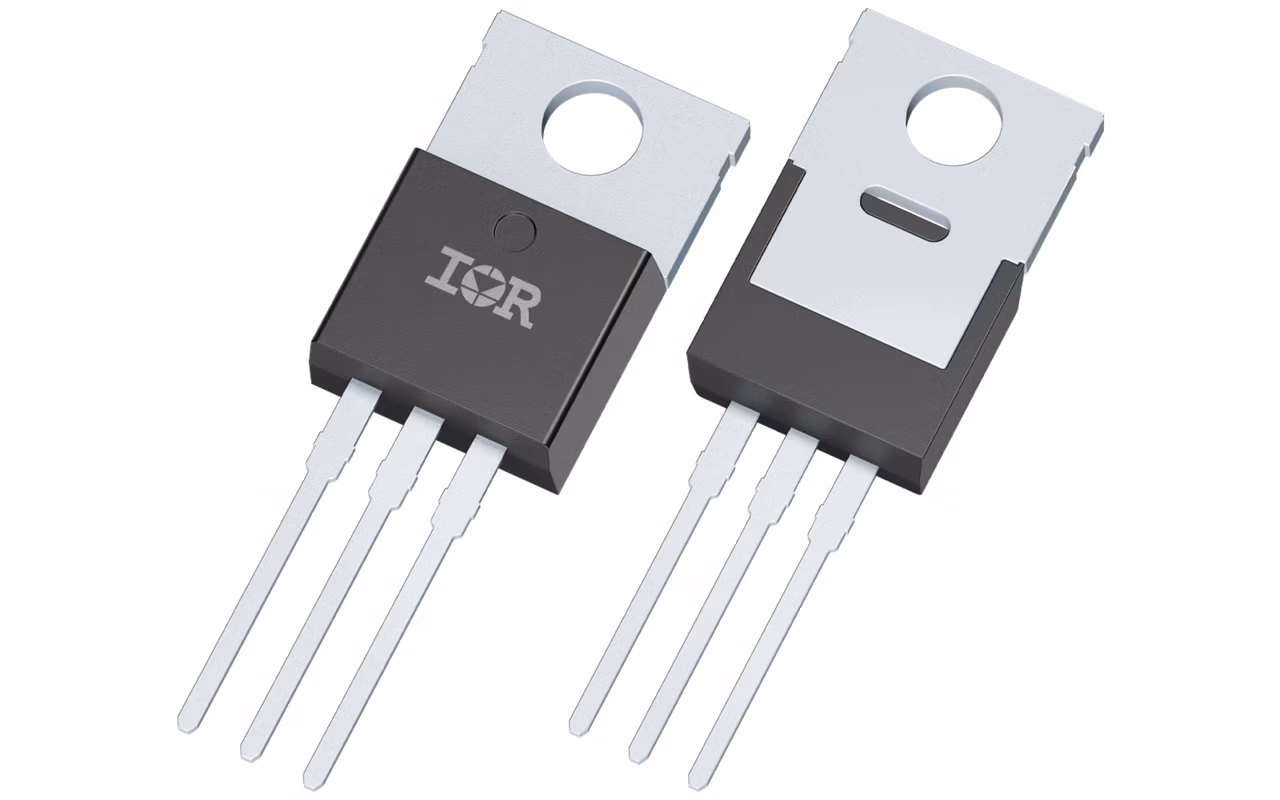

IRF3205
  • IRF3205

IRF3205

Active

The IR MOSFET family of power MOSFETs utilizes proven silicon processes offering designers a wide portfolio of devices to support various applications such as DC motors, inverters, SMPS, lighting, load switches as well as battery powered applications.The devices are available in a variety of surface mount and through-hole packages with industry standard footprints for ease of design.

Infineon Technologies IRF3205 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.36

ID (@25°C) max

110 A

Mounting

THT

Operating Temperature range

-55 °C to 175 °C

Package

TO-220

Polarity

N

Ptot max

150 W

Qgd

36 nC

QG (typ @10V)

97.3 nC

RDS (on) (@10V) max

8 mΩ

RthJC max

1 K/W

Tj max

175 °C

VDS max

55 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

VGS max

20 V

Features

  • Planar cell structure for wide SOA
  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Silicon optimized for applications
  • Industry standard through-hole power
  • High-current rating

Description

  • Increased ruggedness
  • Wide availability at distribution
  • Industry standard qualification
  • High performance, low-frequency
  • Standard pin-out, drop-in replacement
  • High current capability
