2EP130R
  • 2EP130R

2EP130R

Active and preferred

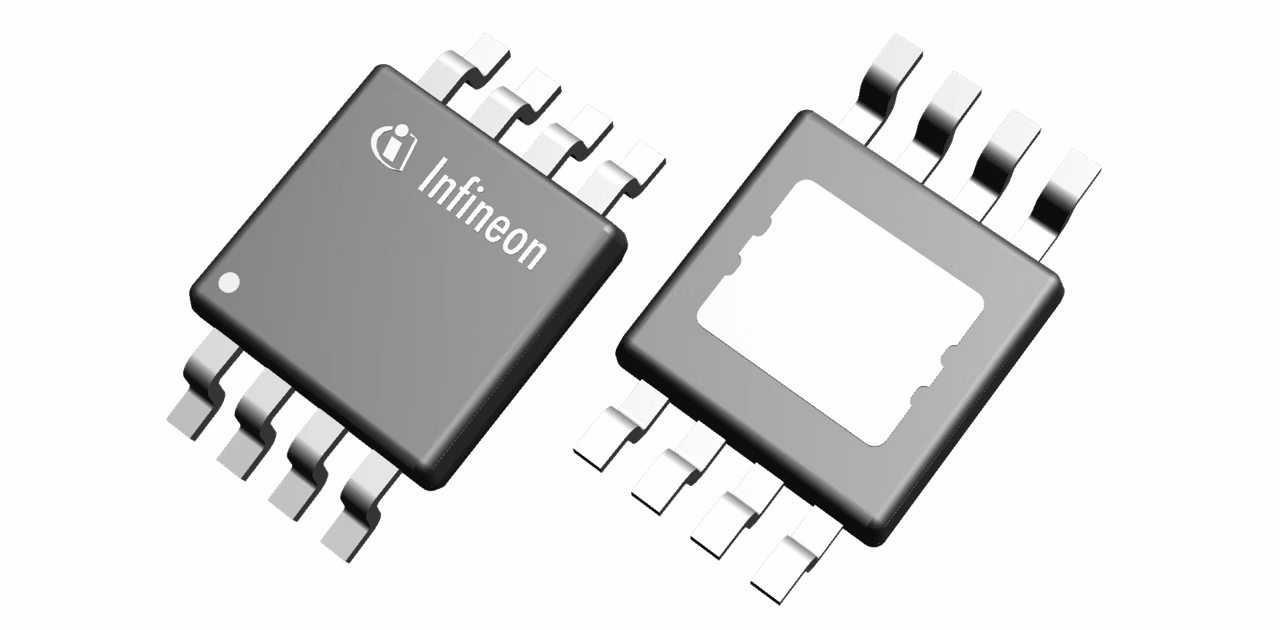

The 2EP130R is a full-bridge transformer driver integrated circuit in a compact TSSOP8 pin package with power integration and optimizations to generate an asymmetric output voltage to supply isolated gate drivers.  It is optimized for asymmetric gate driver supply due to its unique duty-cycle adjustment ability.  2EP130R also offers integrated protections for temperature, short-circuit and UVLO to help protect the system from unwanted faults

Infineon Technologies 2EP130R Product Info

16 April 2026 1

Parameters

Channels

2

Configuration

Full Bridge

Duty Cycle range

10 % to 50 %

Internal Osciallator Frequency range

50 Hz to 695 Hz, 50 kHz to 695 kHz

Output Power

5 W

Qualification

Industrial

Synchronization Propagation Delay

280 ns

Voltage Class

20 V

Apps

Battery energy storage (BESS), EV charging, Industrial motor drives and controls, Photovoltaic, Commercial HVAC system, Uninterruptible power supplies (UPS)

Features

  • Isolated gate driver power supply
  • Wide input supply voltage up to 20 V
  • Supports up to 5 W output power
  • Frequency adjustment from 50 to 695 kHz
  • Duty cycle adjustment from 10 to 50%
  • Adjustable overcurrent threshold
  • Short circuit protection of outputs
  • Over-temperature protection
  • Ready output signals operation
  • Small space-saving package

Description

  • Integration of switch output bridge
  • Reduction in circuit complexity
  • Small footprint for optimized PCB
  • Asymmetric output voltage for SiC
  • Plug and play isolated power supply
