TMCS-40

RECOMMENDED FOR NEW DESIGNS

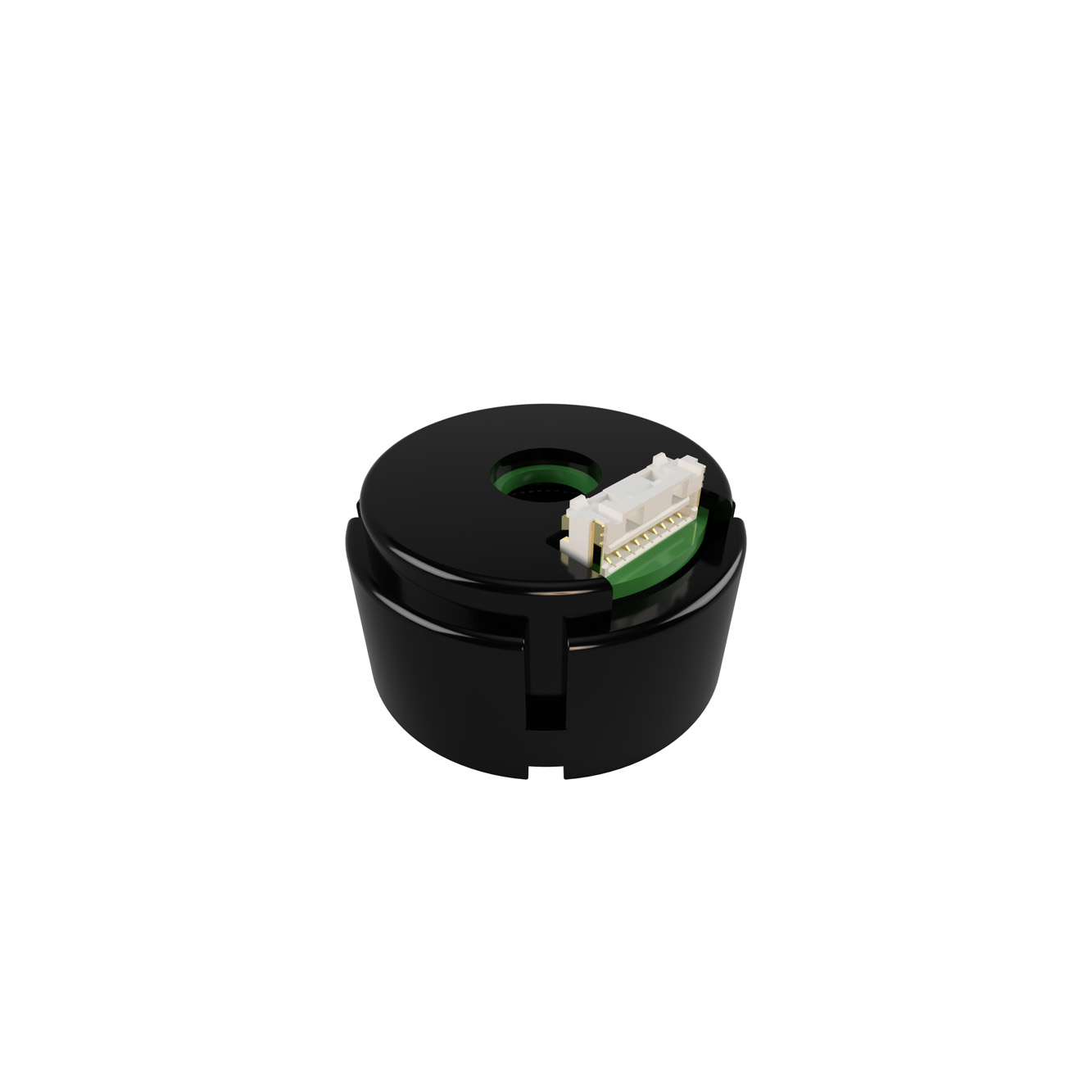

10.000 lines A/B/N encoder with 40mm housing diameter for 6.35mm shaft diameter

Analog Devices TMCS-40 Product Info

10 February 2026 7

Features

Low cost
High resolution

Small dimension
Easy mounting

Part details & applications

TMCS-40 is a low-cost and small-size optical incremental encoder for use with stepper motors and 3-phase PMSM/BLDC motors. It comes with high resolution optical code wheels with a resolution of up to 10K lines.

APPLICATIONS

Stepper Motor FOC
Servo Motors
Precision Motion Control
Automated Equipment
Robotics
