LTC3868-1

PRODUCTION

Low IQ, Dual 2-Phase Synchronous Step-Down Controller

Analog Devices LTC3868-1 Product Info

10 February 2026 4

Features

Low Operating I_Q: 170μA (One Channel On)
Wide Output Voltage Range: 0.8V ≤ V_OUT ≤ 14V
Wide V_IN Range: 4V to 24V
R_SENSE or DCR Current Sensing
Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
OPTI-LOOP^® Compensation Minimizes C_OUT
Phase-Lockable Frequency (75kHz to 850kHz)
Programmable Fixed Frequency (50kHz to 900kHz)
Selectable Continuous, Pulse-Skipping or Burst Mode^® Operation at Light Loads

Very Low Dropout Operation: 99% Duty Cycle
Adjustable Output Voltage Soft-Start
Power Good Output Voltage Monitor
Output Overvoltage Protection
Output Latchoff Protection During Short Circuit
Low Shutdown I_Q: 8μA
Internal LDO Powers Gate Drive from V_IN or EXTV_CC
No Current Foldback During Start-Up

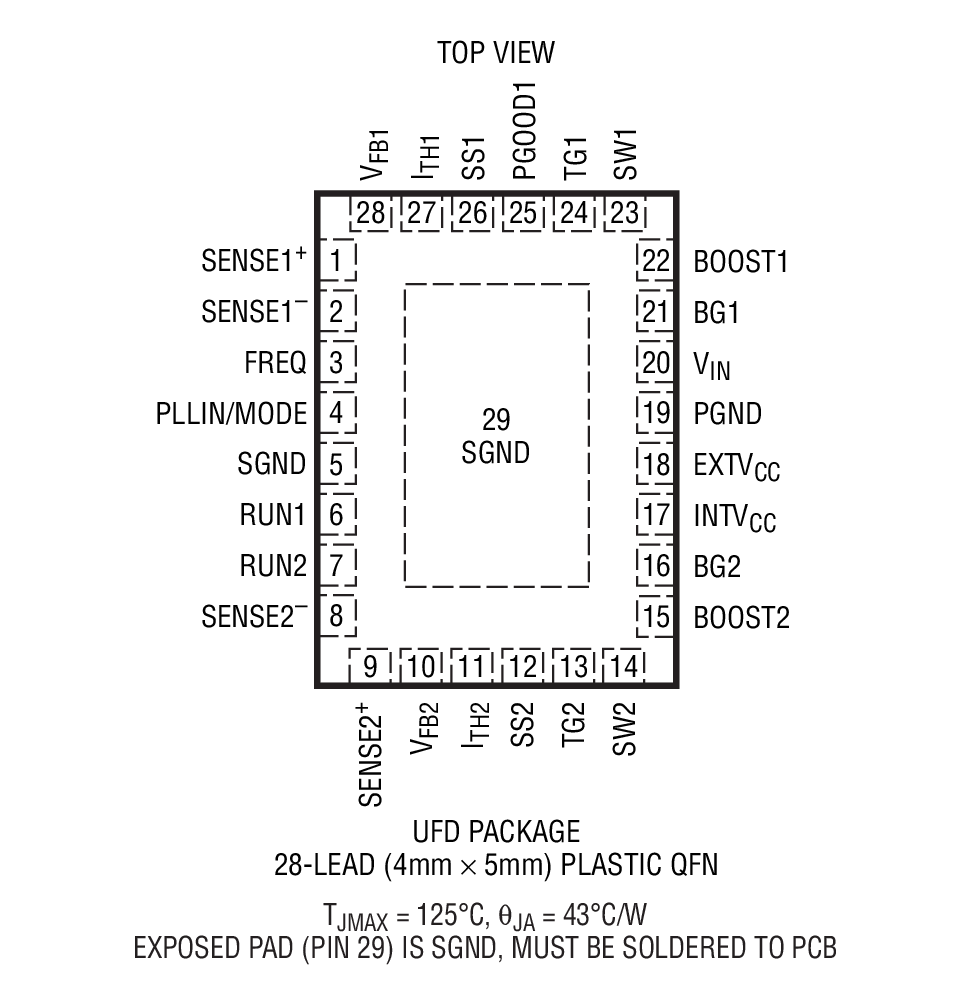

Small 4mm × 5mm QFN and Narrow SSOP Packages

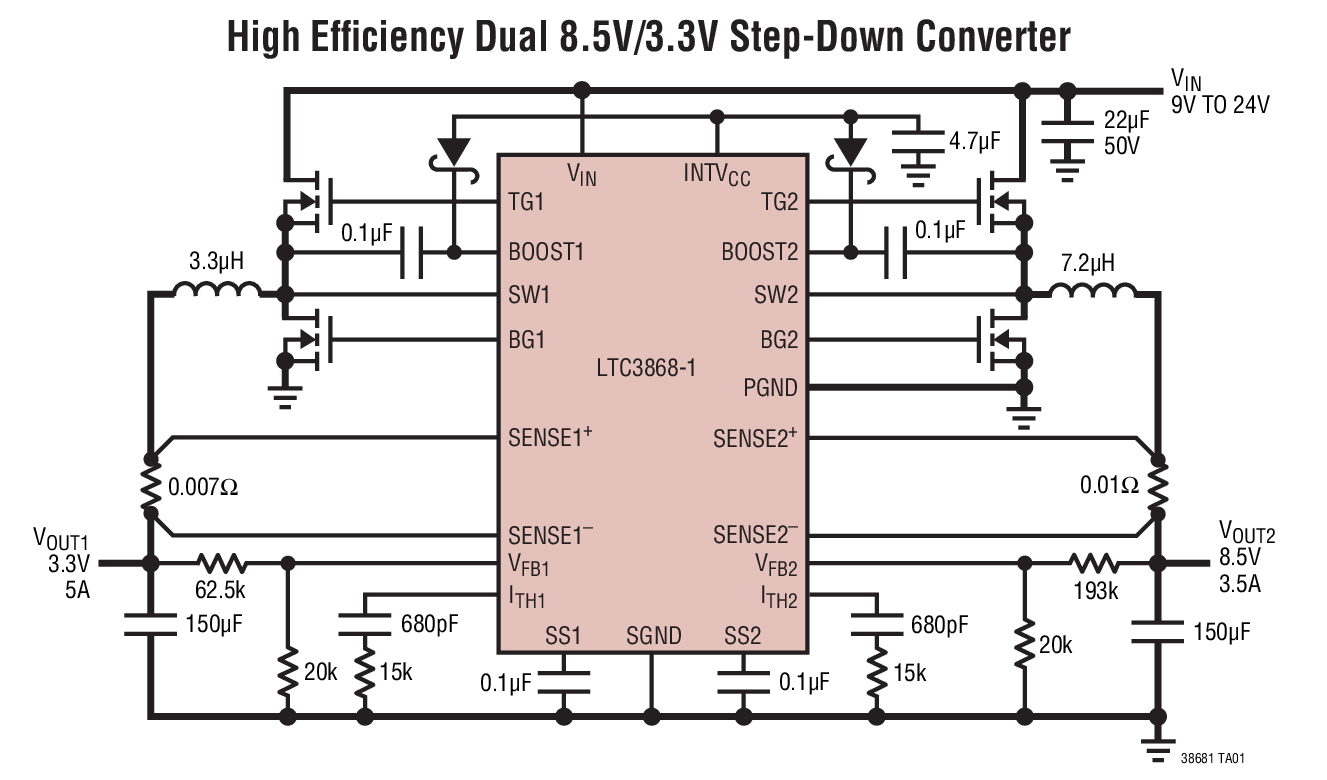

The LTC3868-1 is a high performance dual step-down switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the input capacitor ESR are minimized by operating the two controller outputs out of phase.

The 170μA no-load quiescent current extends operating life in battery powered systems. OPTI-L

Part details & applications

The 170μA no-load quiescent current extends operating life in battery powered systems. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3868-1 features a precision 0.8V reference and a power good output indicator. A wide 4V to 24V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.

Independent soft-start pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The output short-circuit latchoff feature further protects the circuit in short-circuit conditions.

For a leadless 32-pin QFN package with the additional features of adjustable current limit, clock out, phase modulation and two PGOOD outputs, see the LTC3868 data sheet.
