LTC3890

RECOMMENDED FOR NEW DESIGNS

60V Low IQ, Dual, 2-Phase Synchronous Step-Down DC/DC Controller

Analog Devices LTC3890 Product Info

10 February 2026 9

Features

Wide V_IN Range: 4V to 60V (65V Abs Max)
Low Operating I_Q: 50µA (One Channel On)
Wide Output Voltage Range: 0.8V ≤ V_OUT ≤ 24V
R_SENSE or DCR Current Sensing
Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
Phase-Lockable Frequency (75kHz to 850kHz)
Programmable Fixed Frequency (50kHz to 900kHz)
Selectable Continuous, Pulse-Skipping or Low Ripple Burst Mode^® Operation at Light Loads
Selectable Current Limit

Very Low Dropout Operation: 99% Duty Cycle
Adjustable Output Voltage Soft-Start or Tracking
Power Good Output Voltage Monitors
Output Overvoltage Protection
Low Shutdown I_Q : < 14µA
Internal LDO Powers Gate Drive from V_IN or EXTV_CC
No Current Foldback During Start-Up

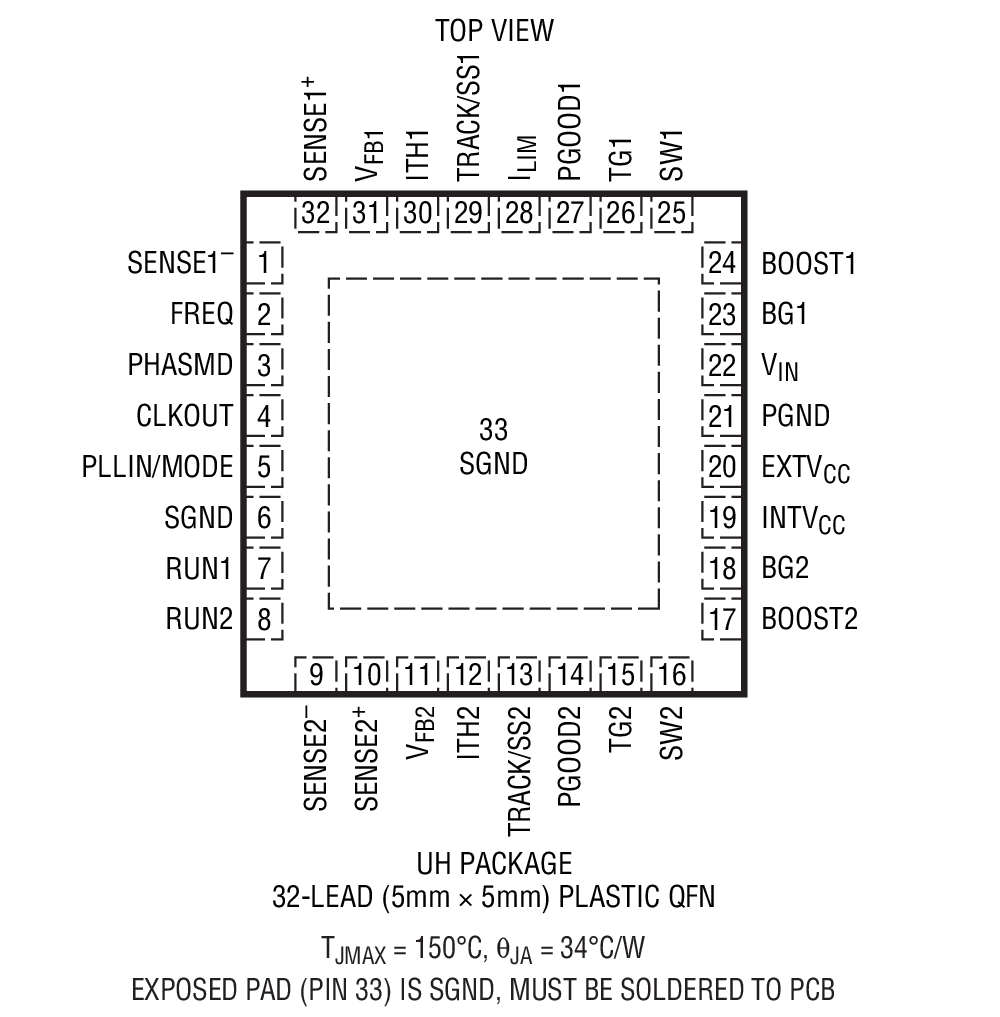

Small Low Profile (0.75mm) 5mm × 5mm QFN Package
AEC-Q100 Qualified for Automotive Applications

Part details & applications

The LTC3890 is a high performance dual step-down switching regulator DC/DC controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows a phase-lockable frequency of up to 850kHz. Power loss and noise due to the ESR of the input capacitor are minimized by operating the two controller output stages out-of-phase.

The 50μA no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP^® compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3890 features a precision 0.8V reference and power good output indicators. A wide 4V to 60V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries.

Independent TRACK/SS pins for each controller ramp the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads. For a leaded package version (28-lead Narrow SSOP), see the LTC3890-1 data sheet.
