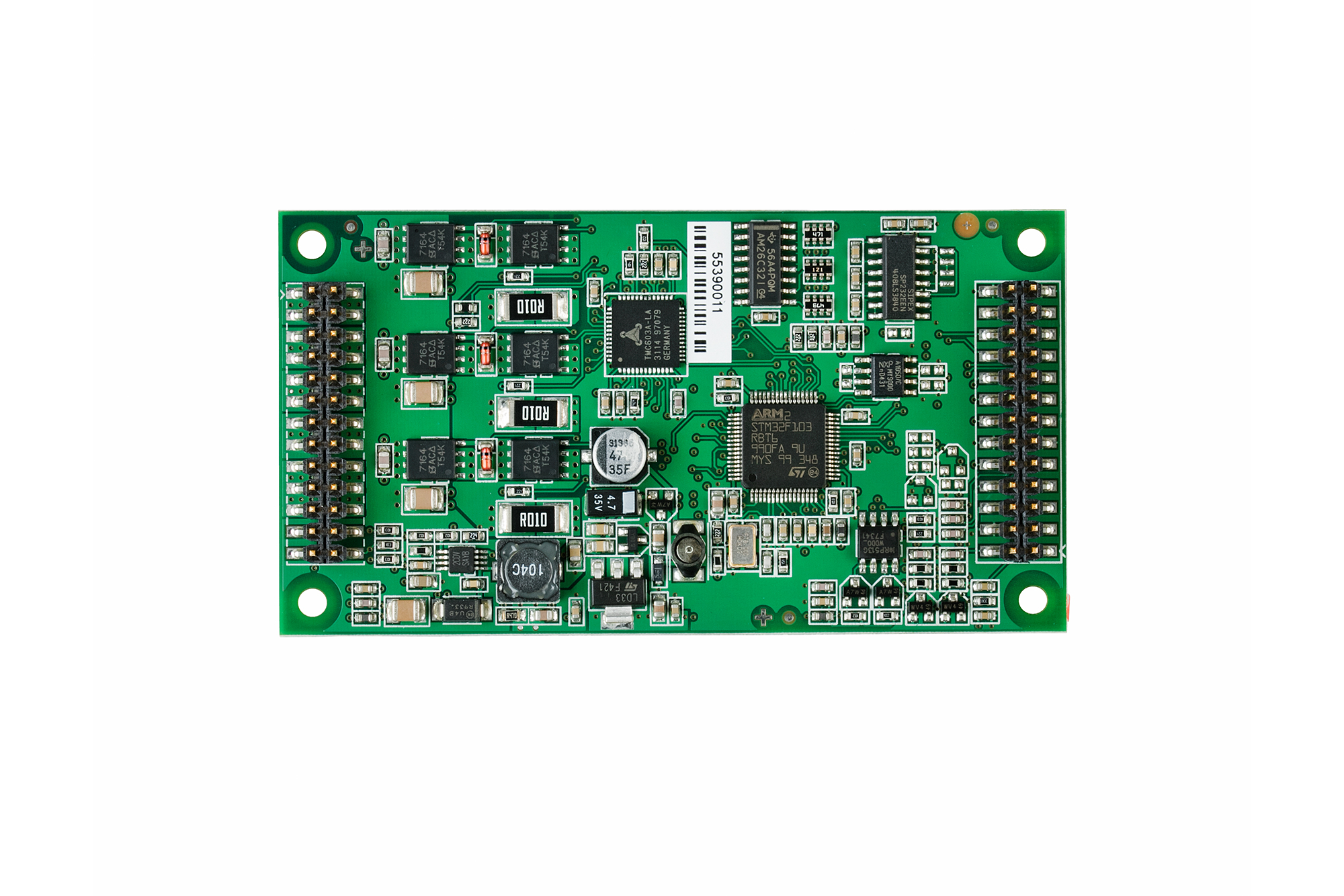

TMCM-1633

NOT RECOMMENDED FOR NEW DESIGNS

Servo drive for 3-phase BLDC motors 14.5 to 50V, 10A, with CAN and RS232 Interface

Analog Devices TMCM-1633 Product Info

10 February 2026 5

Features

Single axis field oriented control for BLDC/PMSM motor
Hall and ABN encoder support
+14, 5 to 48V DC supply voltage

Up to 10A RMS peak motor current
RS232 & CAN interface
CANopen CiA 402 drive profile
Torque, Velocity, and Position control

Part details & applications

The TMCM-1633 is a single axis controller module for brushless DC (BLDC) and PMSM motors. It offers field-oriented control (FOC) with up to 10A RMS phase currents at +48V DC supply. Besides hall sensor and incremental a/b/n encoder interfaces for connection to the motor, digital inputs and outputs can be used. A CAN interface allows communication with a CANopen master.

The TMCM-1633 is compatible with ADI Trinamic's baseboard BB-163x.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE
