TMC5160

RECOMMENDED FOR NEW DESIGNS

Stepper motor cDriver 8 to 60V, for external N-Fets with S/D and SPI Interface, 256 µSteps, SixPoint ramp controller, CoolStep, StallGuard2, SpreadCycle and StealthChop2

Analog Devices TMC5160 Product Info

10 February 2026 4

Features

2-phase stepper motors from 1 to several 10A coil current
Motion Controller with SixPoint™ ramp
Step/Dir Interface with microstep interpolation MicroPlyer™
Voltage Range 8 to 60V DC
SPI & Single Wire UART
Encoder Interface and 2x Ref.-Switch Input
Highest Resolution 256 microsteps per full step
StealthChop2™ for quiet operation and smooth motion
Passive Braking and freewheeling mode

Resonance Dampening for mid-range resonances
SpreadCycle™ highly dynamic motor control chopper
DcStep™ load dependent speed control
StallGuard2™ high precision sensorless motor load detection
CoolStep™ current control for energy savings up to 75%
Full Protection & Diagnostics
Compact Size 7x7mm2 (body) TQFP48 package / 8x8mm² QFN

Part details & applications

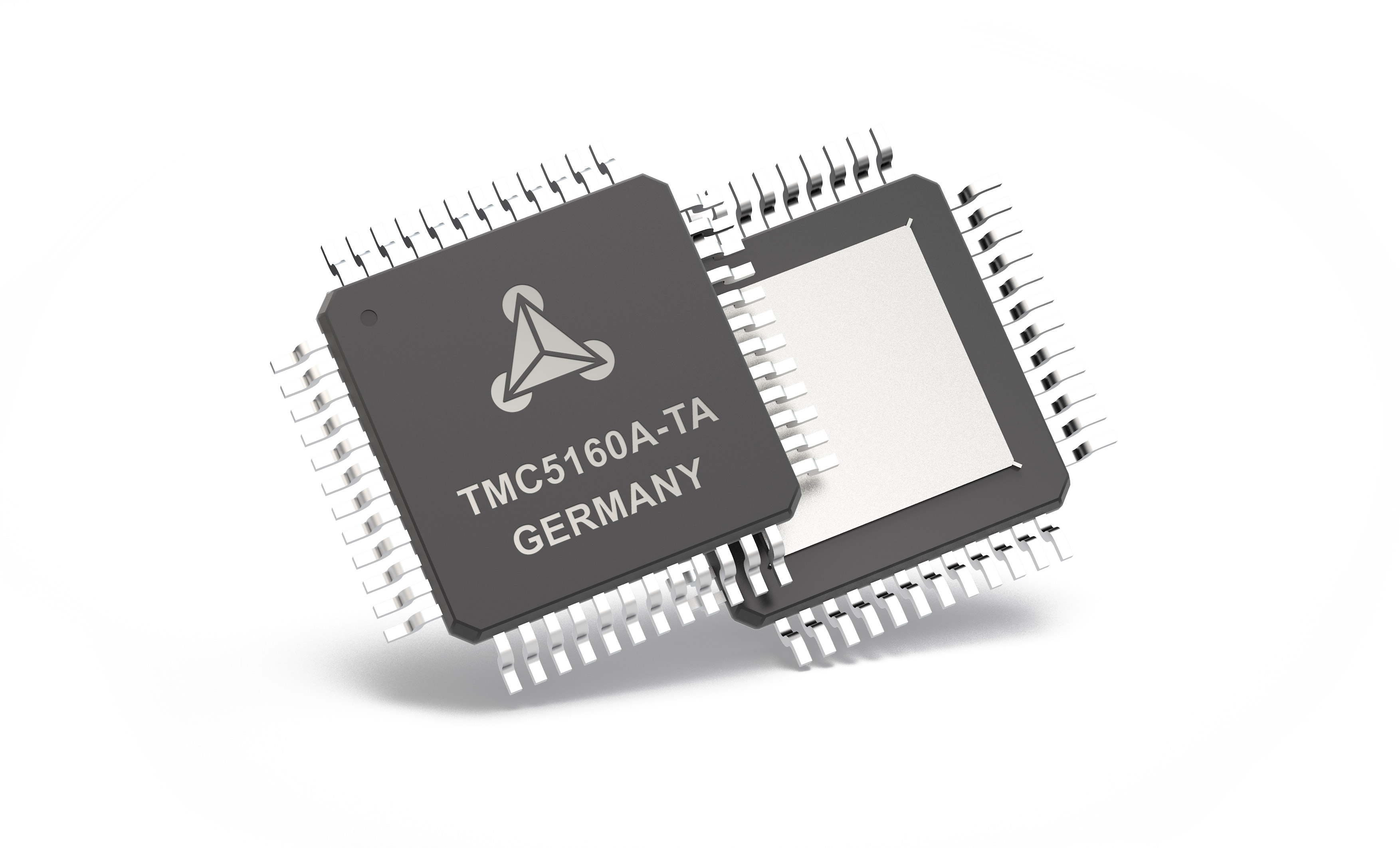

The TMC5160 is a high power stepper motor controller and driver IC with serial communication interfaces. It combines a flexible ramp generator for automatic target positioning with industries’ most advanced stepper motor driver. Using external transistors, highly dynamic, high torque drives can be realized. Based on ADI Trinamic's sophisticated SpreadCycle™ and StealthChop™ choppers, the driver ensures absolutely noiseless operation combined with maximum efficiency and best motor torque. High integration, high energy efficiency and a small form factor enable miniaturized and scalable systems for cost effective solutions. The complete solution reduces learning curve to a minimum while giving best performance in class. TMC5160-WA uses a wettable flank package to allow optical inspection of the soldering joints.

Applications:

Robotics & Industrial Drives
Textile, Sewing Machines
Packing Machines
Factory & Lab Automation
High-speed 3D Printers
Liquid Handling
Medical
Office Automation
CCTV
ATM, Cash Recycler
Pumps and Valves
