ADRF5476

PRE-RELEASE

Flip-Chip, Silicon Digital Step Attenuator, 1 GHz to 72 GHz

Analog Devices ADRF5476 Product Info

10 February 2026 7

Features

Usable frequency range: 1 GHz to 72 GHz
Attenuation range: 4 dB steps to 12 dB
Bidirectional operation
Low insertion loss
- 0.9 dB up to 18 GHz
- 1.3 dB up to 40 GHz
- 2.1 dB up to 67 GHz
- 3.0 dB up to 72 GHz
Typical step error
- ±0.50 dB up to 50 GHz
- ±0.75 dB up to 72 GHz

High input linearity
- P0.1dB: >24 dBm typical
- IP3: >45 dBm typical
High RF input power handling
- Through path: 24 dBm
- Hot switching: TBD dBm
No low frequency spurious signals
Parallel mode control, CMOS and LVTTL compatible
RF switching speed (50% V_CTRL to 10/90% of RF output): 10 ns

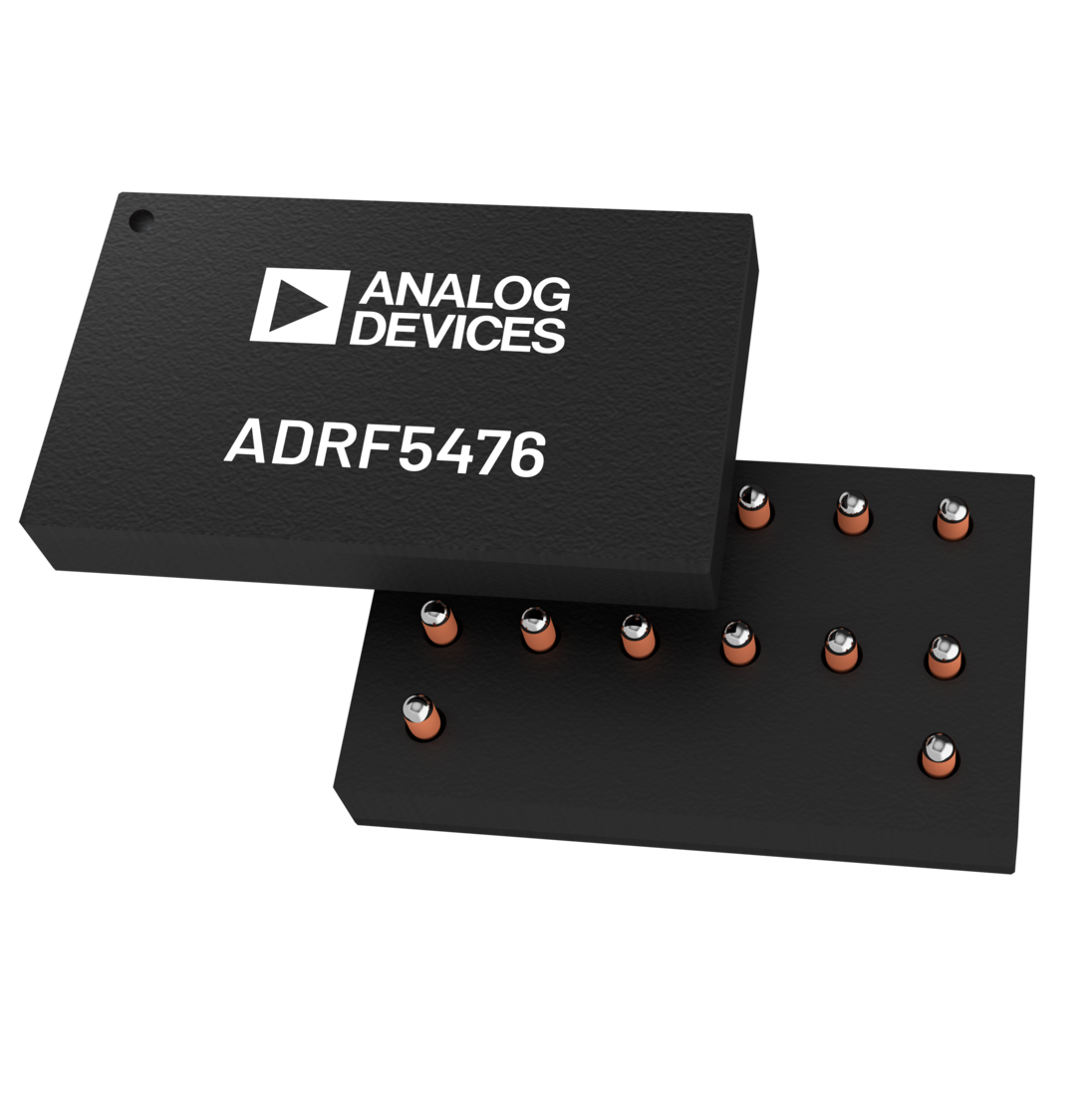

14-ball, 1.940 mm × 1.160 mm, bumped bare die sales

Part details & applications

The ADRF5476 is a silicon, 2-bit digital attenuator with 12 dB attenuation control range in 4 dB steps.

The ADRF5476 is specified from 1 GHz to 72 GHz with less than 3.0 dB of insertion loss and with ±0.75 dB step error at 72 GHz. The device can operate bidirectionally, the ATTIN and ATTOUT ports of the ADRF5476 have an RF power handling capability of 24 dBm average and 24 dBm peak for all states.

The ADRF5476 draws a low current of 120 μA on the positive supply of +3.3 V and 520 μA on negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5476 RF ports are designed to match a characteristic impedance of 50 Ω.

The ADRF5476 is a 14-ball, 1.940 mm × 1.160 mm, bumped bare die sales and can operate between −40°C to +105°C.

APPLICATIONS

Industrial scanners

Test and instrumentation

Cellular infrastructure: 5G mmWave

Military radios, radars, electronic counter measures (ECMs

Microwave radios and very small aperture terminals (VSATs)
