Analog Devices HMC812A Product Info

• Wide Bandwidth: 5 - 30 GHz
• High Power Handling: +25 dBm Input P1dB
• Excellent Linearity: +28 dBm Input IP3
• Wide Attenuation Range: 30 dB
• 24 Lead Ceramic 4x4 mm SMT Package: 16mm²

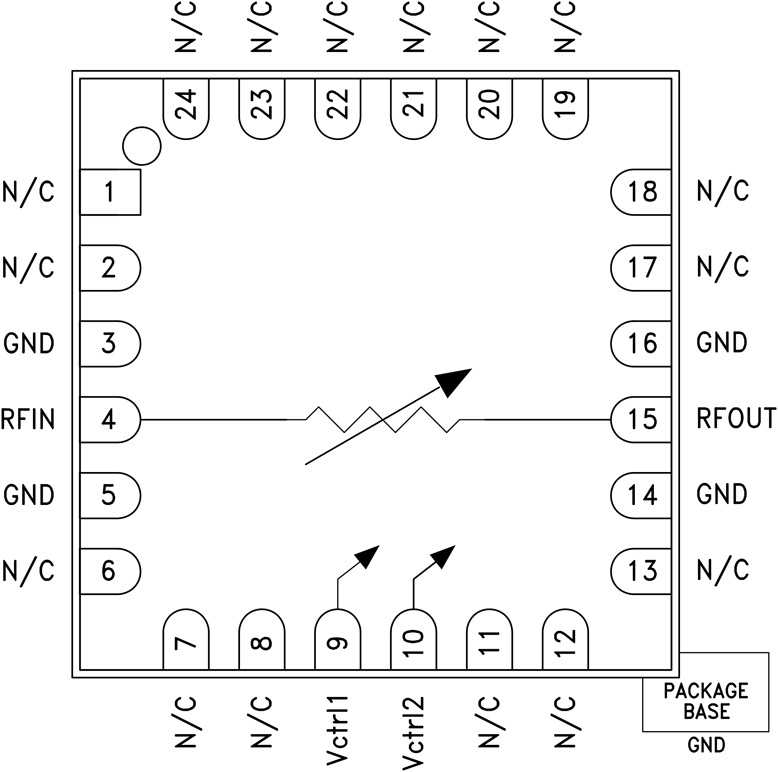

The HMC812ALC4 is an absorptive Voltage Variable Attenuator (VVA) which operates from 5 - 30 GHz and is ideal in designs where an analog DC control signal must be used to control RF signal levels over a 30 dB amplitude range. It features two shunt-type attenuators which are controlled by two analog voltages, Vctrl1 and Vctrl2. Optimum linearity performance of the attenuator is achieved by first varying Vctrl1 of the 1st attenuation stage from -5V to 0V with Vctrl2 fixed at -5V. The control voltage of the 2nd attenuation stage, Vctrl2, should then be varied from -5V to 0V, with Vctrl1 fixed at 0V. The HMC812ALC4 is housed in a RoHS compliant 4x4 mm QFN leadless ceramic package.

Furthermore, if the Vctrl1 and Vctrl2 pins are connected together it is possible to achieve the full analog attenuation range with only a small degradation in input IP3 performance. Applications include AGC circuits and temperature compensation of multiple gain stages in microwave point-to-point and VSAT radios.

• Point-to-Point Radio
• VSAT Radio
• Test Instrumentation
• Microwave Sensors
• Military, ECM & Radar
