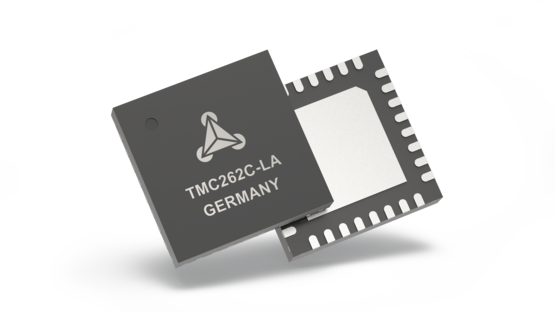

TMC262

RECOMMENDED FOR NEW DESIGNS

Stepper motor driver 5 to 60V, for external P/N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2 and SpreadCycle.

Analog Devices TMC262 Product Info

10 February 2026 6

Features

High Motor Current up to 10A using external (N&P) MOSFETs.
Highest Voltage 5V to 60V DC; more w. ext. gate driver
Highest Resolution up to 256 microsteps per full step
Small Size 5x5mm QFN32 package
Low Power Dissipation synchronous rectification
Protection & Diagnostics short to GND, overtemperature & undervoltage; short to VS & overcurrent
Stand Alone option

EMI-optimized slope & current controlled gate drivers
StallGuard2™ high precision sensorless motor load detection
CoolStep™ load dependent current control saves up to 75%
MicroPlyer™ 256 microstep smoothness with 1/16 step input.
SpreadCycle™ high-precision chopper for best current sine wave form and zero crossing
Improved Silent Motor operation

Part details & applications

The TMC262C drivers for two-phase stepper motors offer an industry-leading feature set, including high-resolution microstepping, sensorless mechanical load measurement, load-adaptive power optimization, and low-resonance chopper operation. Standard SPI™ and STEP/DIR interfaces simplify communication. The TMC262 uses four external N- and P-channel dual-MOSFETs for motor currents up to 10A RMS and up to 60V. Integrated protection and diagnostic features support robust and reliable operation. High integration, high energy efficiency and small form factor enable miniaturized designs with low external component count for cost-effective and highly competitive solutions. The new –C device improves motor silence and adds low side short protection.

Applications:

Textile, Sewing Machines
Factory Automation
Lab Automation
Liquid Handling
Medical
Office Automation
Printer and Scanner
CCTV, Security
ATM, Cash recycler
POS
Pumps and Valves
Heliostat Controller
CNC Machines
