ADPL12002

RECOMMENDED FOR NEW DESIGNS

20V, 2.5A/3.5A, Fully Integrated Synchronous Buck Converter

Analog Devices ADPL12002 Product Info

10 February 2026 5

Features

Multiple Functions for Small Size
- Operating Input Voltage Range: 3V to 20V
- Synchronous DC-DC Converter with Integrated Field-Effect Transistors (FETs) up to 2.5A/3.5A
- 27μA Quiescent Current in Skip Mode
- 400kHz/1.5MHz Switching Frequency
- Spread-Spectrum Option
- Internal Soft-Start
  - 2.5ms for 400kHz
  - 3.5ms for 1.5MHz
- Programmable 0.8V to 12V Output VoltageRange
- 99% Duty Cycle Operation with Low Dropout

High Precision for Safety-Critical Applications
- Precision Enable Thresholds for FullyProgrammable UVLO Thresholds
- Accurate Windowed PGOOD
Forced-PWM and Skip-Mode Operation
Overtemperature, Overvoltage, and Short-CircuitProtection

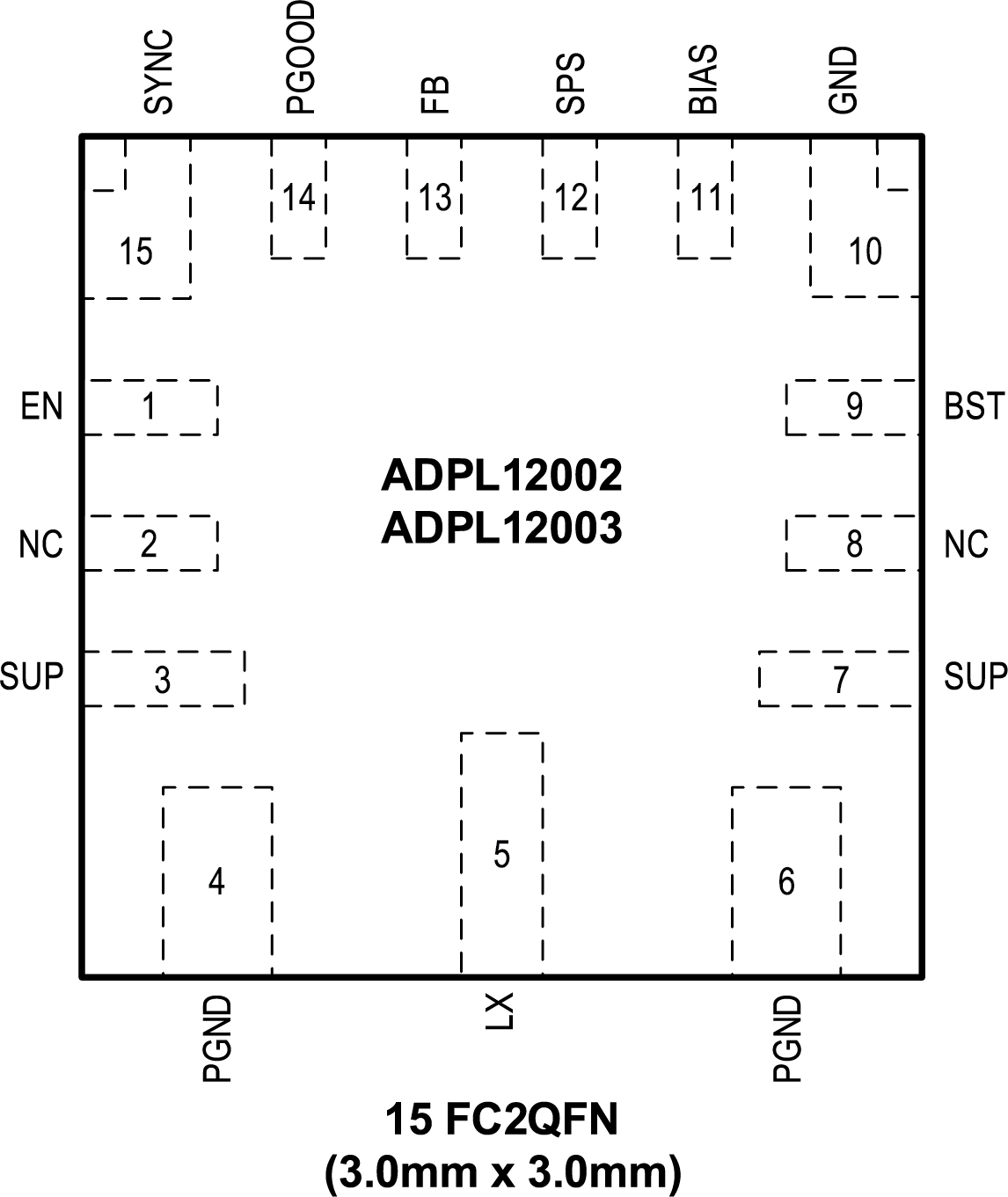

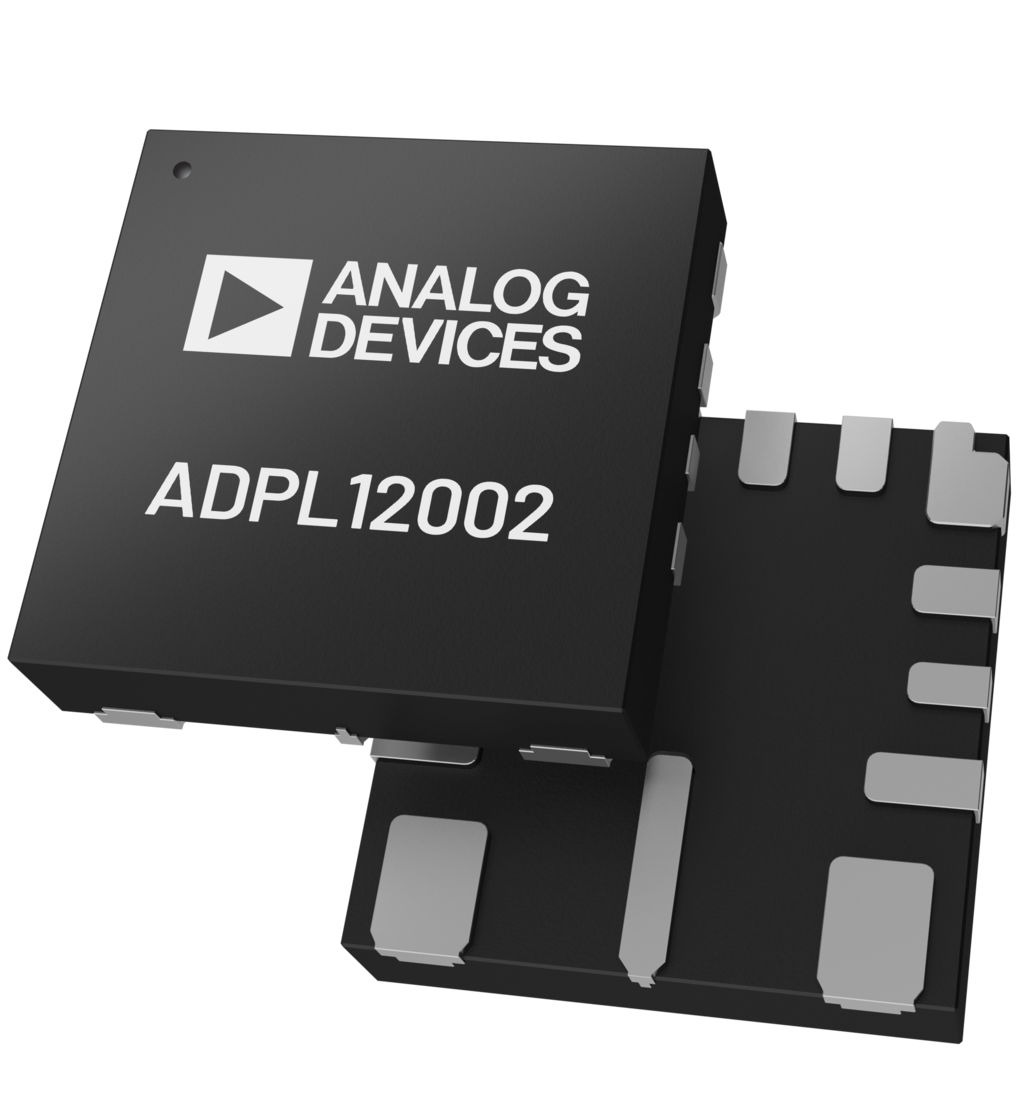

3mm x 3mm, 15-Pin FC2QFN
-40°C to +150°C Operating Junction TemperatureRange

Part details & applications

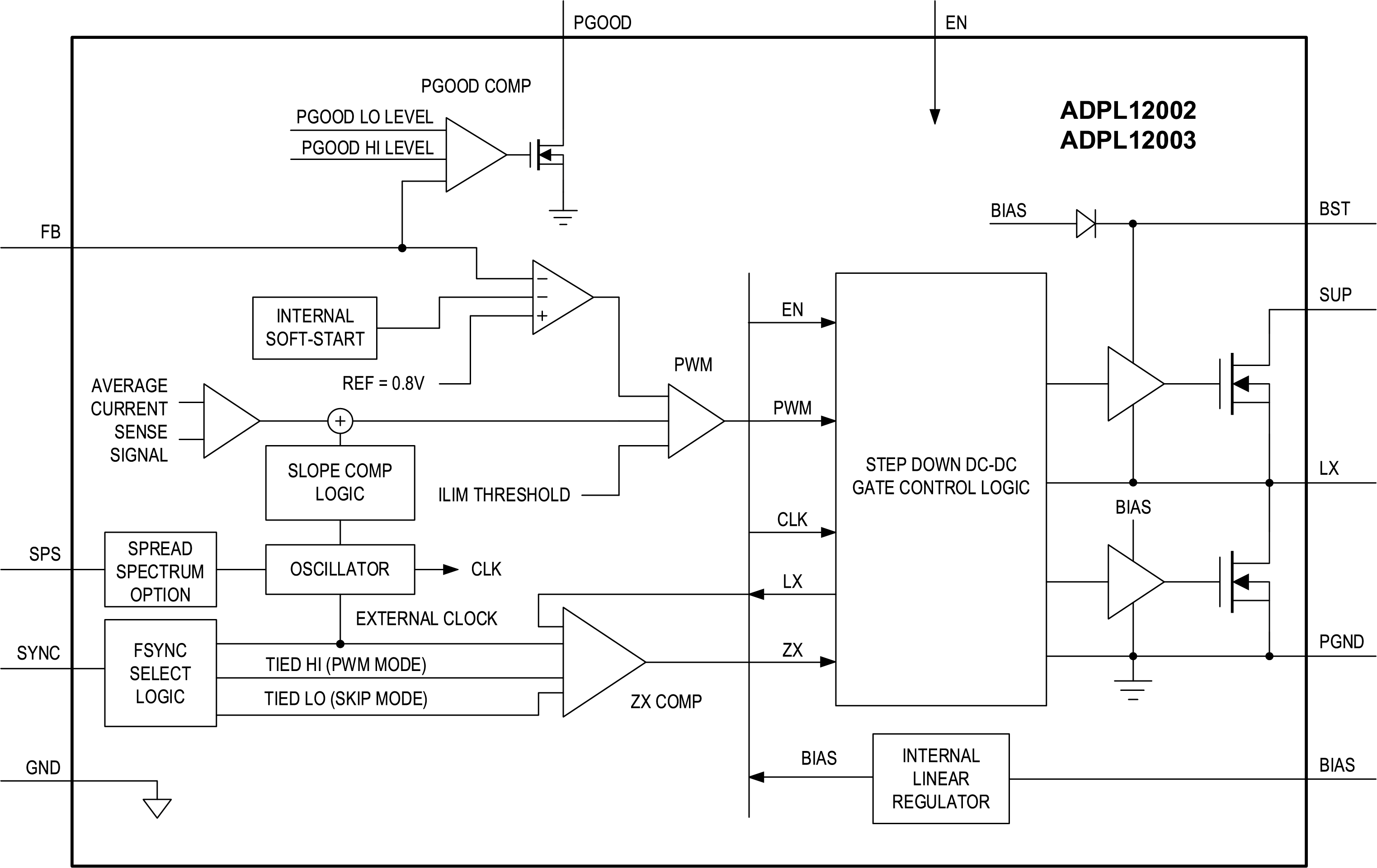

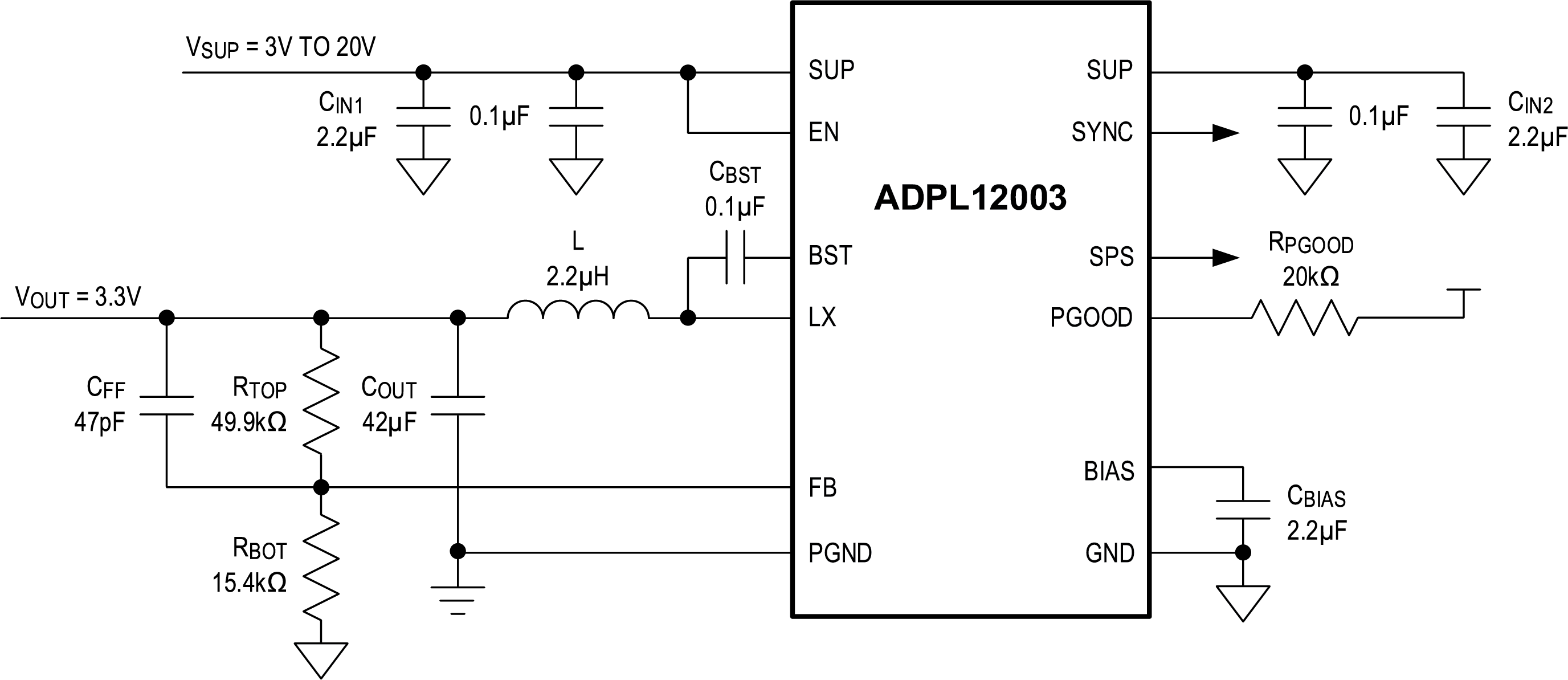

The ADPL12002/ADPL12003 ICs are small, synchronous buck converters with integrated high-side and low-side switches. The ICs are designed to deliver up to 2.5A/3.5A with a wide, 3V to 20V input voltage range. Voltage quality can be monitored by observing the PGOOD signal. The ICs can operate in dropout mode by running at a 99% duty cycle, making it ideal for factory automation applications.

The ADPL12002/ADPL12003 ICs offer externally programmable output voltage. Fixed internal frequency options of 400kHz/1.5MHz are available, allowing for small external components and reduced output ripple.

When SYNC is low, the ADPL12002/ADPL12003 automatically enters skip mode at light loads with an ultra-low quiescent current of 27μA at no load. A pin-selectable Forced–Pulse-width modulation (PWM) mode is also available, which helps to improve Electromagnetic Interference (EMI) performance. The devices have a spread-spectrum frequency modulation option designed to minimize EMI-radiated emissions due to the modulation frequency.

The ADPL12002/ADPL12003 ICs are available in a small, 3mm x 3mm, 17-pin flip-chip quad flat no-lead (FC2QFN) package, utilizing a few external components.

APPLICATIONS

Factory Automation
Point-of-Load
Distributed DC Power Systems
Communication Infrastructure
Test and Measurement
