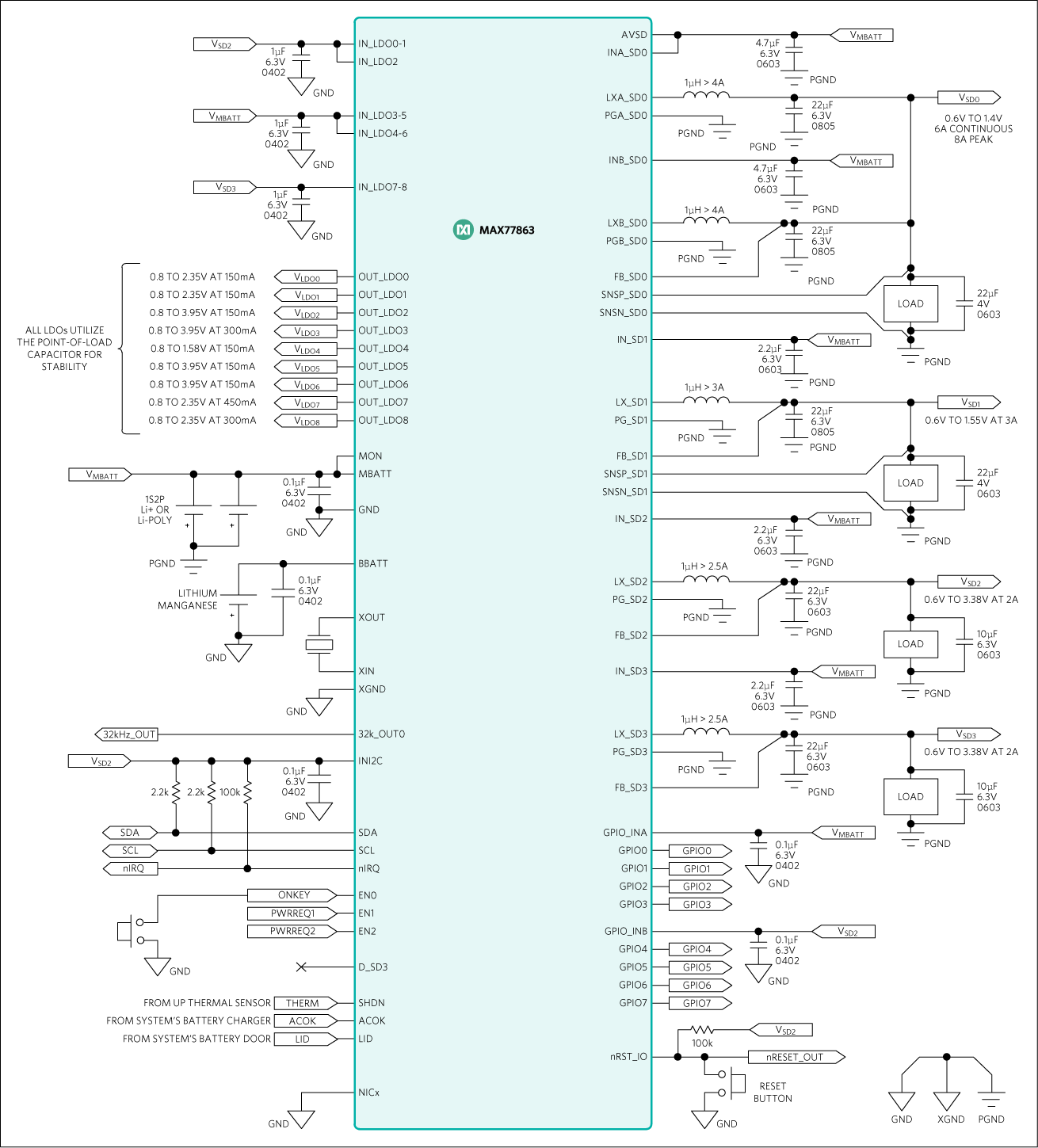

Analog Devices MAX77863 Product Info

• Operates from a 2.6V to 5.5V Source
• Allows for Low-Cost PCB Technology
• Includes 4 DC-to-DC Step-Down Regulators
• Includes 9 Low-Dropout Linear Regulators
• No External MOSFETs Required
• Consumes just 12μA in its Lowest-Power State
• Low-Power Modes on all Regulators Reduces Power Consumption
• LDOs are Stable with only the Point-of-Load Capacitor
• I²C 3.0 Compatible Interface
• nIRQ Interrupt Output
• Eight GPIOs
• Real-Time Clock (RTC)
  • Backup Battery Charger
  • Timing Clock Output
• System Watchdog Timer
• I²C Watchdog Timer
• Bidirectional Reset I/O
• Flexible Power Sequencer (FPS)
• Thermal Shutdown

The MAX77863 is a complete power management IC (PMIC) for mobile devices using multicore application processors.

It is available in a wafter-level package (WLP) to be used in space-constrained applications.

The IC offers a total of 13 regulators. Two regulators have differential remote sensing and are rated for both continuous and peak output current.

Numerous factory-programmable options allow the IC to be tailored for many applications. Contact the factory for more information about programmable options; minimum order quantities may apply.

Applications

• Netbooks
• Tablet PCs
• Personal Internet Viewer
• Digital Photo Frames
• Set-Top Boxes
• Smartphones
• GPS
• Automotive Aftermarket Accessories
