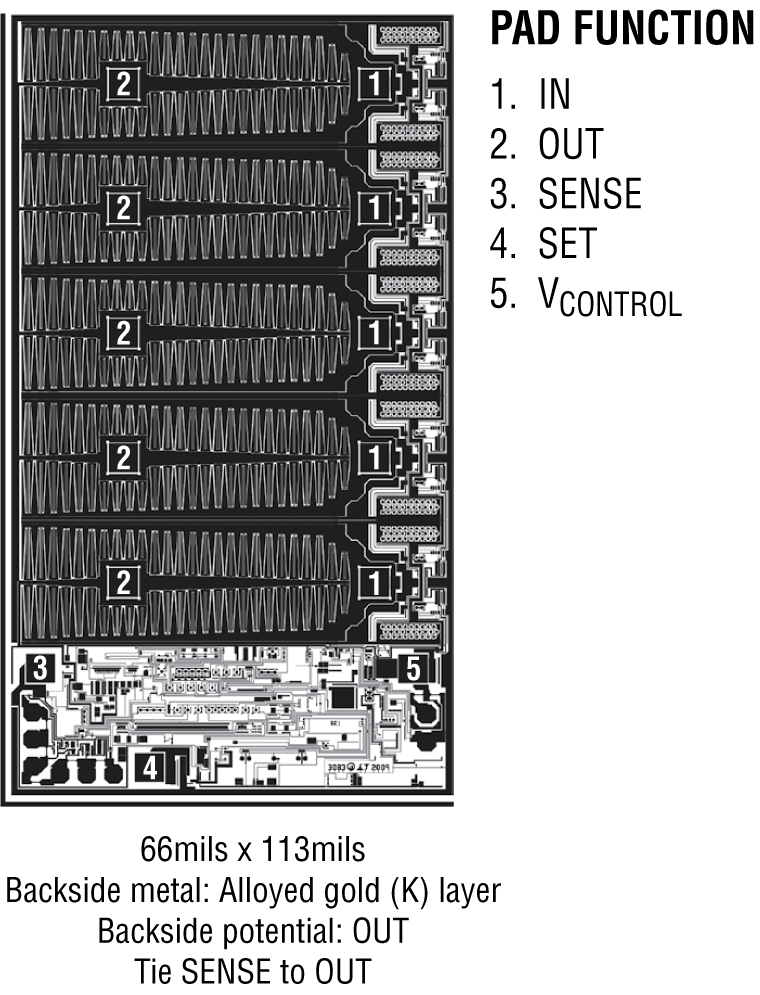

Analog Devices RH3083MK Product Info

The RH3083 is a 2.8A low dropout linear regulator with a unique architecture featuring a precision current source and voltage follower which allows the output to be programmed to any voltage between zero and 18V. Multiple regulators can be paralleled to increase total output current and spread heat over a system PC board with no need for heat sinking. The pass transistor collector can be brought out independently of the circuit supply voltage to allow dropout voltage to approach the saturation limit of the pass transistor. A small 10μF capacitor on the output with an ESR of less than 0.5Ω is adequate to ensure stability. Applications with large output load transients require a larger output capacitor value to minimize output voltage change. Input circuitry ensures output safe operating area current limiting and thermal shutdown protection. The rated output current of an RH3083-based part is fixed by internal wire length/resistance. Analog Devices dice element evaluations are based on parts rated for 2.8A output current.

Applications

• High Efficiency Linear Regulators
• Constant Voltage/Current Regulators
• Programmable Current Source/Sink
• Space System Power Supplies
• Switching Power Supply Post Regulators
• Very Low Voltage Power Supplies
