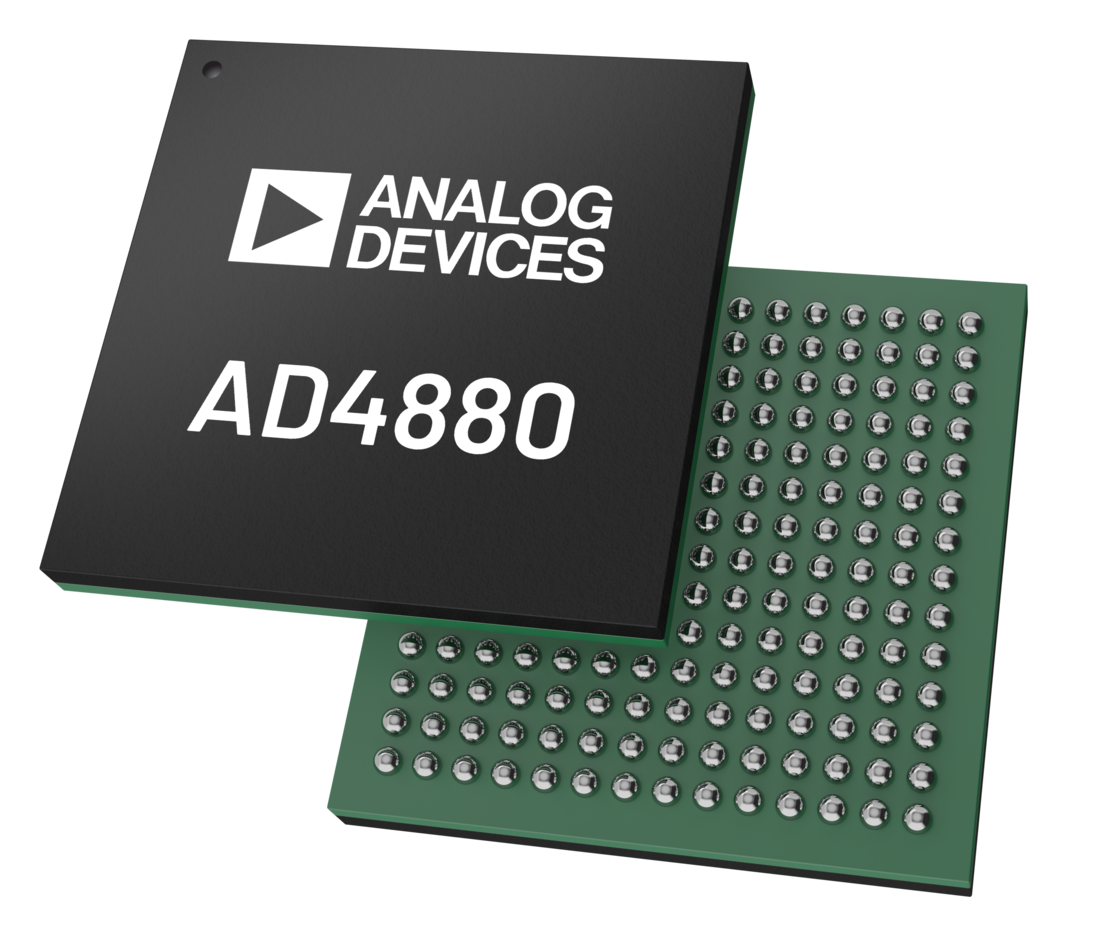

Dual Channel 20-Bit, 40 MSPS, SAR ADC with Analog Front End

Analog Devices AD4880 Product Info

10 February 2026 4

Features

Integrated fully differential ADC drivers
- Wide input common-mode voltage range
- High common-mode rejection
- Single-ended to differential conversion
Gain options include: 1.03, 1.25, 1.53, 2.03, 2.74, 4.11, and 5.77
- Integrated gain-setting resistors
High performance
- 20-bit resolution, no missing codes
- Throughput: 40 MSPS per channel
- Conversion latency: 46.25 ns
- INL: ±5 ppm (typical), ±10 ppm (maximum)
- SNR/THD
  - 92.6 dB (typical)/−110 dB (typical) at f_IN = 1 kHz
  - TBD dB (typical)/−TBD dB (typical) at f_IN = 500 kHz
- Noise spectral density: −167.6 dBFS/Hz
Low power
- 105 mW per channel typical at 40 MSPS

Integrated, low-drift reference buffers and decoupling
Integrated V_CM generation
Digital features and data interface
- Conversion result FIFO, 16K samples per channel
- Digital averaging filter with up to 2¹⁰ decimation
SPI configuration per channel
Configurable data interface per channel
- Single lane, DDR, serial LVDS, 800 MBPS per lane
- Dual lane, DDR, serial LVDS, 400 MBPS per lane
- Single/quad lane SPI data interface
Package
- 196-ball, 10 mm x 10 mm CSP_BGA, 0.65 mm pitch
- Integrated supply decoupling capacitors
Operating temperature range: −40°C to +85°C

Part details & applications

The AD4880 is a dual-channel, low noise, high speed, low distortion, 20-bit, successive approximation register (SAR) analog-to-digital converter (ADC) with integrated fully differential drivers (FDA) and gain setting resistors. Maintaining high performance (signal-to-noise and distortion (SINAD) ratio > TBD dB) at signal frequencies up to TBD kHz allows the AD4880 to service a wide variety of precision, wide bandwidth data acquisition applications.

The integration of the ADC drivers, low drift reference buffers, low dropout (LDO) regulators along with all critical decoupling capacitors greatly alleviate analog front-end design challenges. Specified performance is easier to achieve, requiring a simpler and overall smaller printed circuit board (PCB) layout.

The internal nodes of the FDA stage are accessible, which allows setting its frequency response in a flexible way, enabling filter configurations up to 3rd order by the use of external passive components without the need for an additional amplifier. The requirements for the input anti-alias filtering can be relaxed by oversampling in combination with usage of the integrated digital filters and decimation to reduce noise and lower the output data rate, for applications that do not require the lowest latency of the AD4880.

High throughput and low-latency applications can benefit from the two independent, multilane low voltage differential signaling (LVDS) interfaces. Alternatively, the load on the digital host can be eased by storing the captured data in the on-chip, 16K samples per channel first in, first out (FIFO) memory, then asynchronously accessing it via the data interfaces.

APPLICATIONS

Digital imaging
Cell analysis
Spectroscopy
High speed data acquisition
Digital control loops, hardware in the loop
Power quality analysis
Source measurement units
