Absolute Maximum Ratings

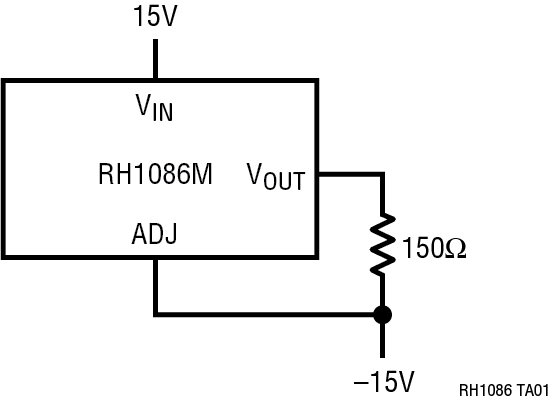

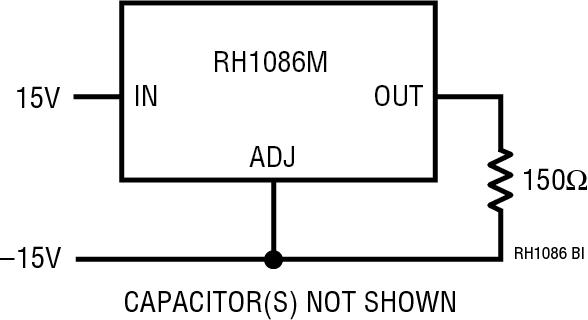

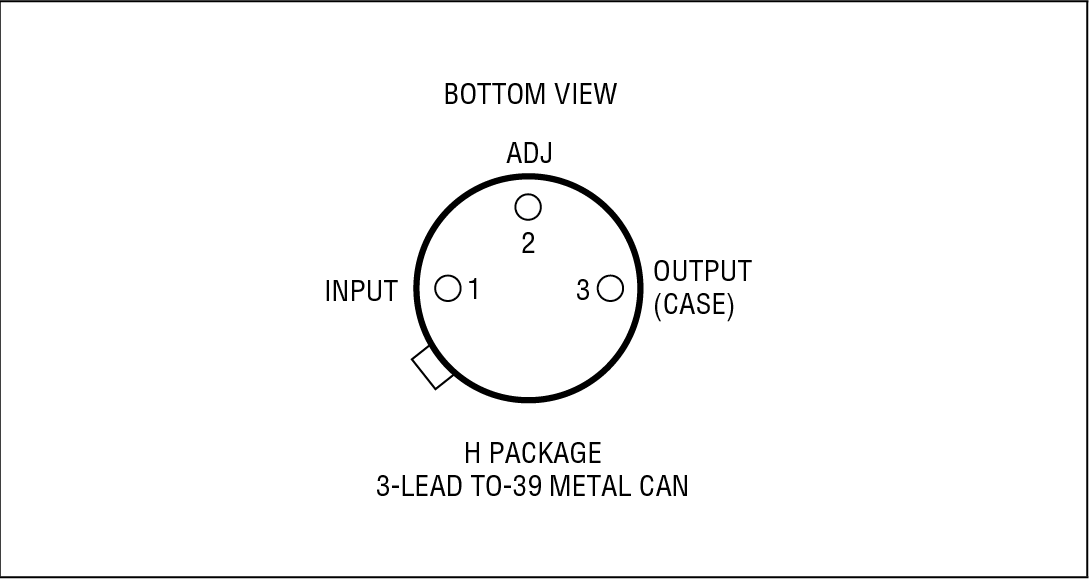

The RH1086M positive adjustable regulator is designed to provide 0.5A for the H package and 1.5A for the K package with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V inputoutput differential and the dropout voltage is fully specified as a function of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the output voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.
The RH1086M is pin compatible with older 3-terminal regulators. A 10μF output capacitor is required on this new device. However, this is usually included in most regulator designs.
The wafer lots are processed to Analog Devices’ in-house Class S flow-to-yield circuits usable in stringent military applications.
Applications
We partner with third party vendors who assemble and test packaged products with RH Dice inside.
For MSK prefix products please click on the Part Number in the table below and scroll down the linked page to find the part number.
