MAX9375

PRODUCTION

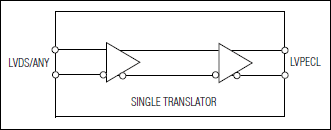

Single LVDS/Anything-to-LVPECL Translator Single, Fully Differential, High-Speed, Anything-to-LVPECL Translator Designed for Signal Rates Up to 2GHz

Analog Devices MAX9375 Product Info

10 February 2026 4

Features

Guaranteed 2GHz Switching Frequency
Accepts LVDS/LVPECL/Anything Inputs
421ps (typ) Propagation Delays
30ps (max) Pulse Skew
2ps_RMS (max) Random Jitter
Minimum 100mV Differential Input to Guarantee AC Specifications
Temperature-Compensated LVPECL Output
+3.0V to +3.6V Power-Supply Operating Range
>2kV ESD Protection (Human Body Model)

Part details & applications

The MAX9375 is a fully differential, high-speed, anything-to-LVPECL translator designed for signal rates up to 2GHz. The MAX9375's extremely low propagation delay and high speed make it ideal for various high-speed network routing and backplane applications.

The MAX9375 accepts any differential input signal within the supply rails and with minimum amplitude of 100mV. Inputs are fully compatible with the LVDS, LVPECL, HSTL, and CML differential signaling standards. Outputs are LVPECL and have sufficient current to drive 50Ω transmission lines.

The MAX9375 is available in an 8-pin µMAX package and operates from a single +3.3V supply over the -40°C to +85°C temperature range.

Applications

Backplane Logic Standard Translation
DLCs
DSLAM
Local Area Networks (LANs)
WANs
