Analog Devices ADG918 Product Info

• Wideband switch: −3 dB at 4 GHz
• Absorptive/reflective switches
• High off isolation (43 dB at 1 GHz)
• Low insertion loss (0.8 dB at 1 GHz)
• Single 1.65 V to 2.75 V power supply
• CMOS/LVTTL control logic

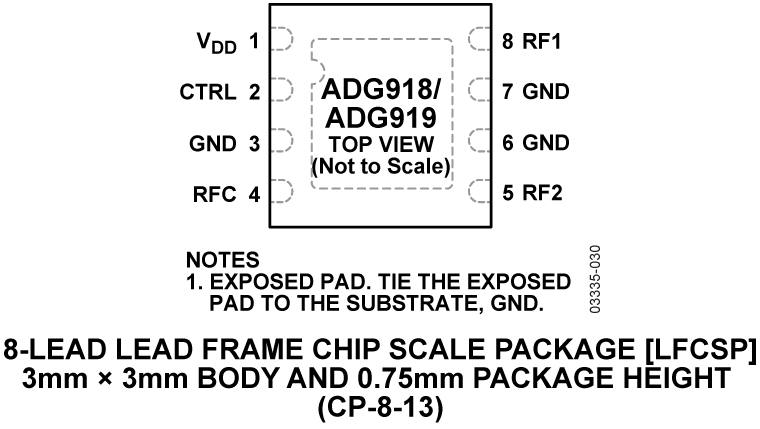

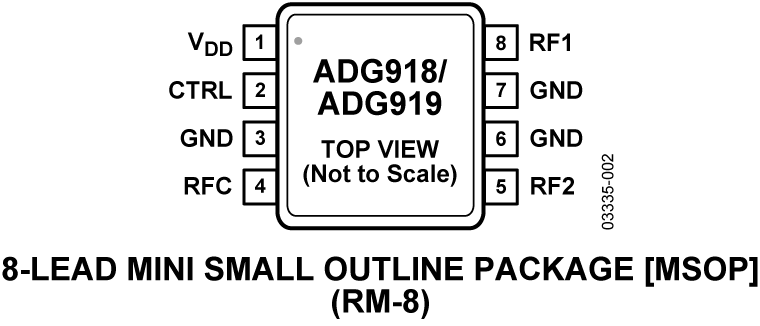

• 8-lead MSOP and tiny 3 mm × 3 mm LFCSP
• Low power consumption (<1 µA)

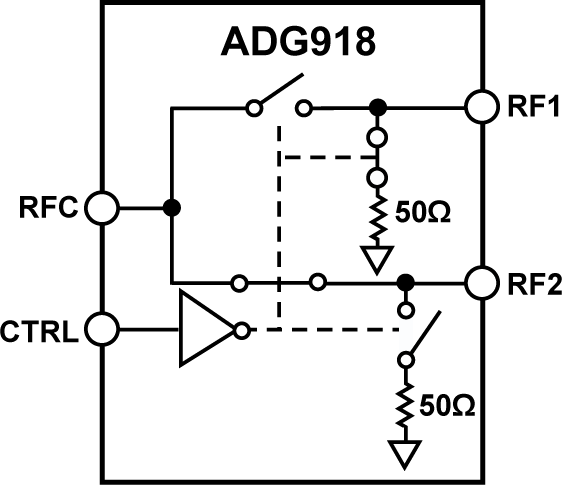

The ADG918/ADG919 are wideband switches using a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG918 is an absorptive (matched) switch having 50 Ω terminated shunt legs, whereas the ADG919 is a reflective switch. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range. They have on-board CMOS control logic, thus eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited to wireless and general-purpose high frequency switching applications.

Product Highlights

1. −43 dB off isolation at 1 GHz.
2. 0.8 dB insertion loss at 1 GHz.
3. Tiny 8-lead MSOP/LFCSP.

Applications

• Wireless communications
• General-purpose RF switching
• Dual-band applications
• High speed filter selection
• Digital transceiver front end switch
• IF switching
• Tuner modules
  Antenna diversity switching
