Analog Devices MAX86916 Product Info

• Miniature 3.5mm x 7.0mm x 1.5mm, 14-Pin Optical Module
• Optical-Grade Glass for Long-Term Optimal and Robust Performance
• Ultra-Low-Power Operation for Mobile Device
• Ultra-Low Shutdown Current (0.7µA, Typical)
• Built-In Low Noise Crosstalk Cancellation
• -40°C to +85°C Operating Temperature Range
• Reflective Heart Rate Monitor, Medical-Grade Pulse Oximeter, and Bio-Optical Sensor Platform

The MAX86916 is an integrated optical sensor platform with applications in bio-sensing, proximity, and color. It includes internal LEDs, photodetectors, and low-noise electronics with ambient-light-rejection circuitry. The MAX86916 helps ease design-in effort to all mobile and wearable devices.

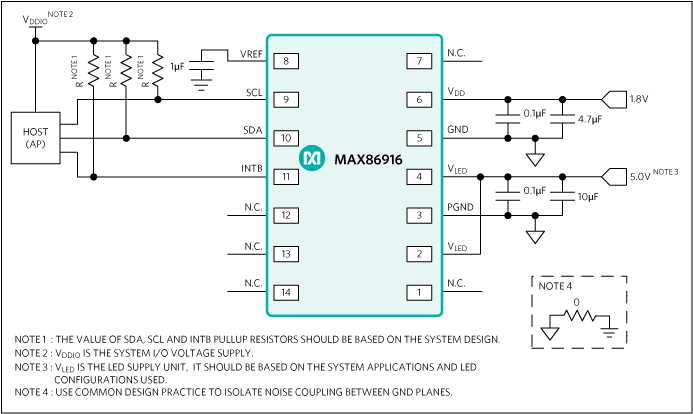

The MAX86916 operates on a 1.8V supply voltage, with a separate 5.5V power supply for the internal LEDs. Communication to and from the module is accomplished entirely through a standard I²C-compatible interface. The module can be shut down through software with nearzero standby current, allowing the power rails to remain powered at all times.

Applications

• Smartphones/Accessories
• Tablets
• Wearable Devices
• Fitness Assistant Devices
