Analog Devices MAX5521 Product Info

• Single +1.8V to +5.5V Supply
• Ultra-Low 6µA Supply Current
• Shutdown Mode Reduces Supply Current to 0.18µA (max)
• Small 4mm x 4mm x 0.8mm Thin QFN Package
• Flexible Force-Sense-Configured Rail-to-Rail Output Buffers
• Internal Reference Sources 8mA of Current (MAX5521)
• Fast 16MHz 3-Wire SPI-/QSPI-/MICROWIRE-Compatible Serial Interface
• TTL- and CMOS-Compatible Digital Inputs with Hysteresis
• Glitch-Free Outputs During Power-Up
• EV Kit Available

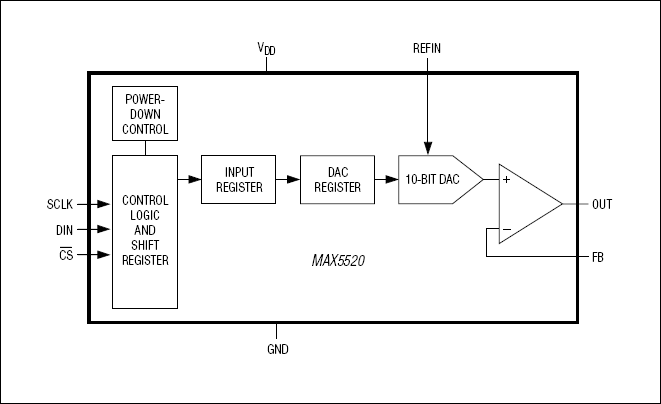

The MAX5520/MAX5521 are single, 10-bit, ultra-low- power, voltage-output, digital-to-analog converters (DACs) offering rail-to-rail buffered voltage outputs. The DACs operate from a 1.8V to 5.5V supply and consume less than 6µA, making them desirable for low-power and low-voltage applications. A shutdown mode reduces overall current, including the reference input current, to just 0.18µA. The MAX5520/MAX5521 use a 3-wire serial interface that is compatible with SPI™, QSPI™, and MICROWIRE™.

At power-up, the MAX5520/MAX5521 outputs are driven to zero scale, providing additional safety for applications that drive valves or for other transducers that must be off during power-up. The zero-scale outputs enable glitch-free power-up. The MAX5520 accepts an external reference input. The MAX5521 contains an internal reference and provides an external reference output. Both devices have force-sense-configured output buffers. The MAX5520/MAX5521 are available in a 4mm x 4mm x 0.8mm, 12-pin, thin QFN package and are guaranteed over the extended -40°C to +85°C temperature range. For 12-bit compatible devices, refer to the MAX5530/MAX5531 data sheet. For 8-bit compatible devices, refer to the MAX5510/MAX5511 data sheet.

Applications

• Automatic Trimming and Calibration in Factory or Field
• Automatic Trimming and Calibration in Factory or Field
• Chemical Sensor Cell Bias for Gas Monitors
• Industrial Devices
• Industrial Process Control and Remote Industrial Devices
• Instrumentation
• Portable Battery-Powered Devices
• Programmable Liquid Crystal Display (LCD) Bias
• Programmable Voltage and Current Sources
• Remote Data Conversion and Monitoring
