HMC554ALC3B

PRODUCTION

10 GHz to 20 GHz, GaAs, MMIC, Double Balanced Mixer

Analog Devices HMC554ALC3B Product Info

10 February 2026 5

Features

Conversion loss: 8.5 dB
LO to RF Isolation: 37 dB
Input IP3: 20 dBm

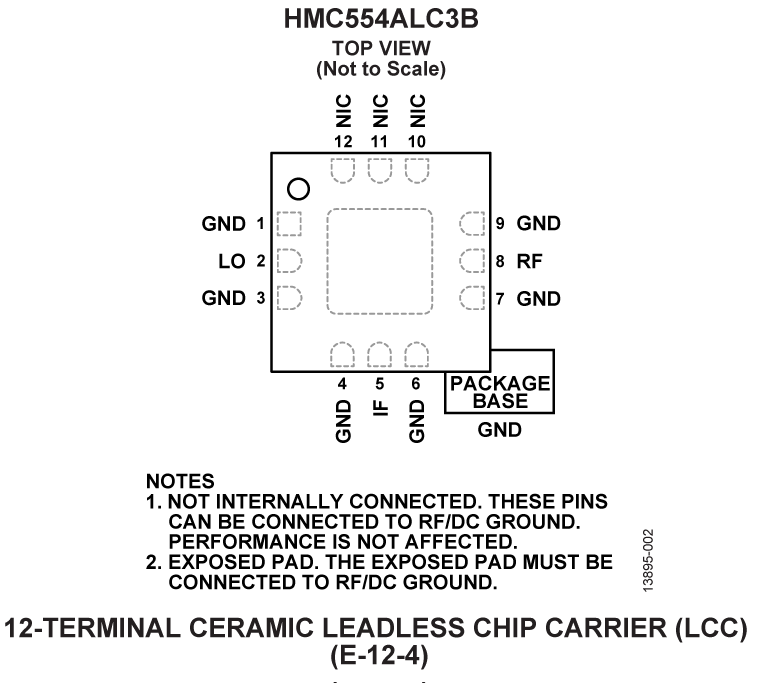

RoHS compliant, 2.90 mm × 2.90 mm, 12-terminal LCC package

Part details & applications

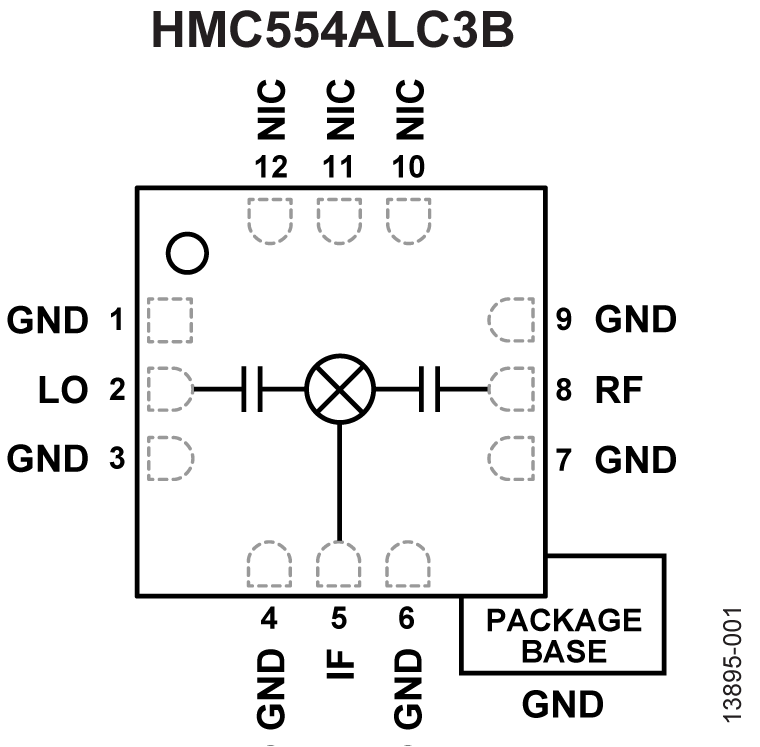

The HMC554ALC3B is a general-purpose, double balanced mixer in a leadless RoHS compliant leadless chip carrier (LCC) package that can be used as an upconverter or downconverter between 10 GHz and 20 GHz. This mixer is fabricated in a gallium arsenide (GaAs) metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The HMC554ALC3B provides excellent local oscillator (LO) to RF and LO to intermediate frequency (IF) isolation due to optimized balun structures. The RoHS compliant HMC554ALC3B eliminates the need for wire bonding and is compatible with high volume surface-mount manufacturing techniques.

Applications

Microwave and very small aperture terminal (VSAT) radios
Test equipment
Military electronic warfare (EW); electronic countermeasure (ECM); and command, control, communications and intelligence (C3I)
