Analog Devices Inc.
0
PRODUCTION

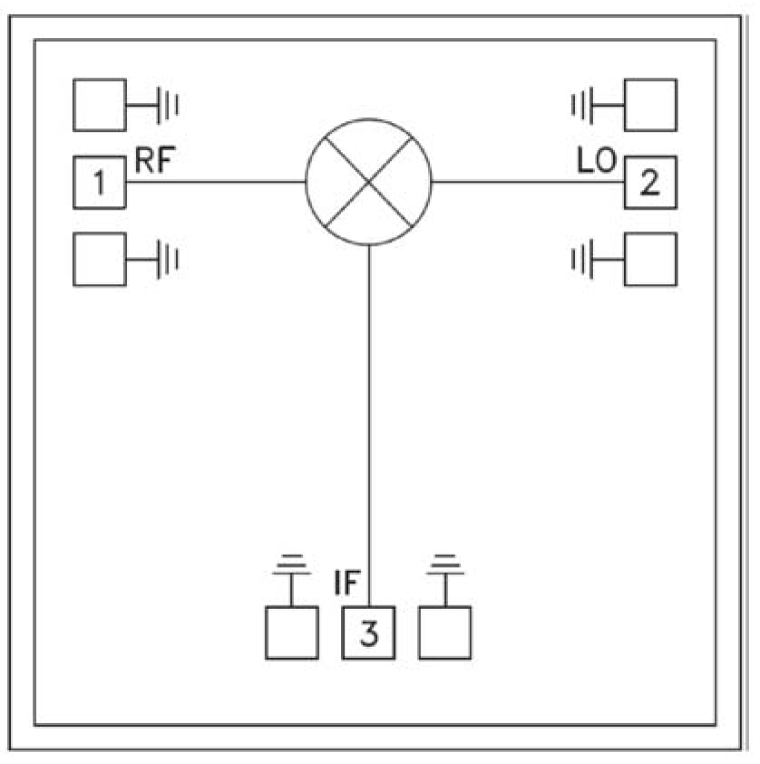

The ADH141S is a miniature passive double balanced mixer that can be used as a frequency converter with DC to 7GHz at the IF port and 6 to 18GHz at the RF and LO port supplied in die form with Class K element evaluation. Product can be used as an upconverter or downconverter. The device is a passive diode/balun type mixer with high dynamic range. The mixer can handle larger signal levels than most active mixers due to the high third order intercept of 20 dBm. MMIC implementation provides exceptional balance in the circuit resulting in high LO/RF and LO/IF isolations and unit-to-unit consistency. The ADH141S allows the use of surface mount manufacturing techniques and is suitable for high reliability military, industrial and space applications.
APPLICATIONS
