MAX5480

PRODUCTION

8-Bit Parallel DAC in QSOP-16 Package Single, Parallel, Current-Output DAC in a QSOP Package

Analog Devices MAX5480 Product Info

10 February 2026 5

Features

QSOP-16 Package (same footprint as SO-8)
Single +5V Supply Operation
V_OUT or I_OUT Operation
8-Bit Parallel Interface
Guaranteed Monotonic Over Temperature
Low Power Consumption-100µA max
±1/2 LSB Linearity Over Temperature

Part details & applications

The MAX5480 is a CMOS, 8-bit digital-to-analog converter (DAC) that interfaces directly with most microprocessors. On-chip input latches make the DAC load cycle interface similar to a RAM write cycle, where active-low CS and active-low WR are the only control inputs required.

Linearity of ±1/2 LSB is guaranteed, and power consumption is less than 500 µW. Monotonicity is guaranteed over the full operating temperature range.

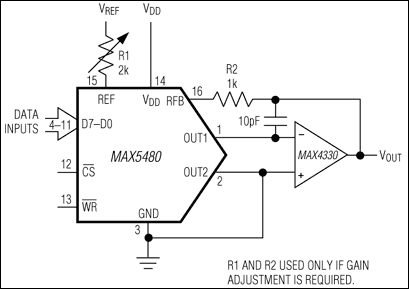

The MAX5480 can be operated in either voltage-output or current-output mode. It is available in a small 16-pin QSOP package.

Applications

Digitally Adjusted Power Supplies
General Purpose
Portable Battery-Powered Instruments
Programmable Gain
RF Transmit Control in Portable Radios
VCO Frequency Control
