Analog Devices MAX5217 Product Info

• Low-Power Consumption (80µA, max)
• 18µs Settling Time
• 16-/14-Bit Resolution in a 3mm x 5mm, 8-Pin µMAX Package
• Relative Accuracy
  • ±0.4 LSB INL (MAX5215, 14 Bit) typ, 1 LSB (max)
  • ±1.2 LSB INL (MAX5217, 16 Bit) typ, 4 LSB (max)
• Guaranteed Monotonic Over All Operating Range
• Low Gain and Offset Error
• Wide 2.7V to 5.5V Supply Range
• Rail-to-Rail Buffered Output Operation
• Safe Power-Up-Reset to Zero DAC Output
• I²C-Compatible 400kHz Serial Interface
• User-Programmable Active-Low AUX Input Functions
  • Active-Low CLR, Clear to 0, Midscale, or Full Scale
  • Active-Low LDAC, Asynchronous Load DAC
• 256kΩ Reference Input Resistance for Low Power Operation
• Buffered Voltage Output Directly Drives 10kΩ Loads
• Output Power-Down Terminated with 1kΩ or 100kΩ to Ground or Left High-Impedance

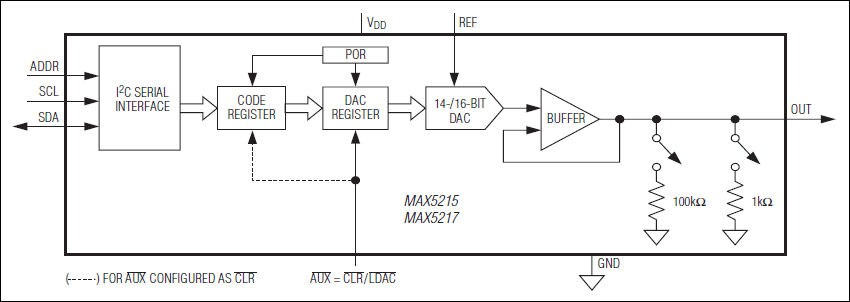

The MAX5215/MAX5217 are pin-compatible 14-bit and 16-bit digital-to-analog converters (DACs). The MAX5215/MAX5217 are single-channel, low-powered, buffered voltage-output DACs. The devices use a precision external reference applied through the high resistance input for rail-to-rail operation and low system power consumption. The MAX5215/MAX5217 accept a wide 2.7V to 5.5V supply voltage range. Power consumption is extremely low to accommodate most low-power and low-voltage applications.

The MAX5215/MAX5217 have an I²C-compatible, 2-wire serial interface that operates at clock rates up to 400kHz. On power-up, the MAX5215/MAX5217 reset the DAC output to zero, providing additional safety for applications that drive valves or other transducers that need to be off on power-up. The DAC output is buffered resulting in a low supply current of 80µA (max) and a low offset error of ±0.25mV. An asynchronous active-low input, AUX, is provided. This input can be programmed to support clear or load DAC operations, independent of the serial interface. The MAX5215/MAX5217 are available in an ultra-small (3mm x 5mm), 8-pin µMAX^® package and are specified over the -40°C to +105°C extended industrial temperature range.

Applications

• Automatic Test Equipment
• Automatic Tuning
• Communication Systems
• Data Acquisition
• Gain and Offset Adjustment
• Portable Instrumentation
• Power Amplifier Control
• Process Control and Servo Loops
• Programmable Voltage and Current Sources
• Remote Sensing
