Analog Devices MAX4999 Product Info

• Increased Flexibility and Performance
  • Multiplexer Supports USB 2.0 Standard
  • -3dB Bandwidth: 1200MHz (typ)
• Low On-Resistance and Power Management Features Minimize System Losses
  • 6.5Ω (typ) On-Resistance (R_ON)
  • Single +3.0V to +3.6V Power-Supply Voltage
  • Enable Input Puts All Channels in High-Impedance State (Standby Mode)
  • Low Operating Current (1µA) and Ultra-Low Quiescent Current (30nA) in Standby Mode
• Reduce Component Count and Design Complexity
  • Low Threshold Eliminates the Need for Translators in 1.8V Low-Voltage Systems
• Saves Board Space
  • 32-Pin, 5mm x 5mm, TQFN Package

The MAX4999 differential Hi-Speed USB analog multiplexer features low on-capacitance (C_ON) switching, making it an ideal solution for the USB server/mass storage market. The MAX4999 is designed for USB 2.0 low-/full-/Hi-Speed applications with capability of supporting data rates up to 480Mbps.

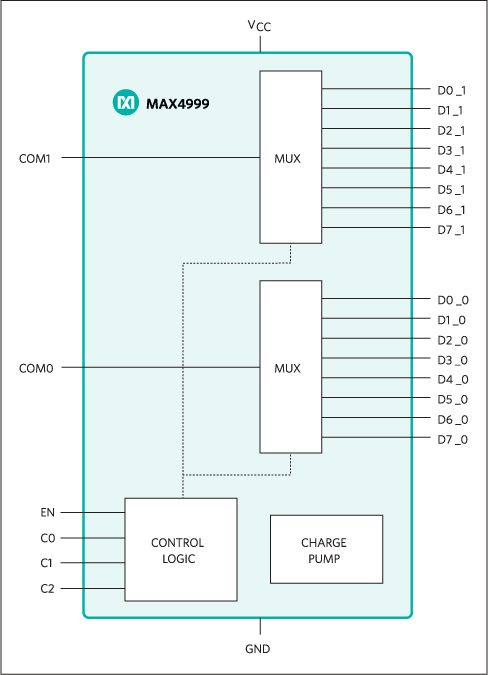

The MAX4999 is a differential 8:1 multiplexer. The MAX4999 features three digital inputs to control the signal path. Typical applications include switching a USB connector between eight USB hosts and a USB device.

An enable input (EN) is provided to disable all channels and place the device into a high-impedance state (standby mode), shutting off the charge pump for minimum power consumption.

The MAX4999 operates from a +3.0V to +3.6V power-supply voltage and is specified over the -40°C to +85°C extended temperature range. The MAX4999 is available in a 5mm x 5mm, 32-pin TQFN package.
