AD9213

RECOMMENDED FOR NEW DESIGNS

12-Bit, 10.25 GSPS, JESD204B, RF Analog-to-Digital Converter

Analog Devices AD9213 Product Info

10 February 2026 5

Features

High instantaneous dynamic range
NSD
- −155 dBFS/Hz at 10 GSPS with −9 dBFS, 170 MHz input
- −153 dBFS/Hz at 10 GSPS with −1 dBFS, 170 MHz input
SFDR: 70 dBFS at 10 GSPS with −1 dBFS, 1000 MHz input
SFDR excluding H2 and H3 (worst other spur): 89 dBFS at 10 GSPS with −1 dBFS, 1000 MHz input
Low power dissipation: <4.6 W typical at 10 GSPS
Integrated input buffer (6.5 GHz input bandwidth)
- 1.4 V p-p full-scale analog input with R_IN = 50 Ω
- Overvoltage protection

16-lane JESD204B output (up to 16 Gbps line rate)
Multichip synchronization capable with 1 sample accuracy
- DDC NCO synchronization included
Integrated DDC
- Selectable decimation factors
- 16 profile settings for fast frequency hopping
Fast overrange detection for efficient AGC
On-chip temperature sensor
On-chip negative voltage generators
Low CER: <1 × 10⁻¹⁶
12 mm × 12 mm, 192-ball BGA-ED package

Part details & applications

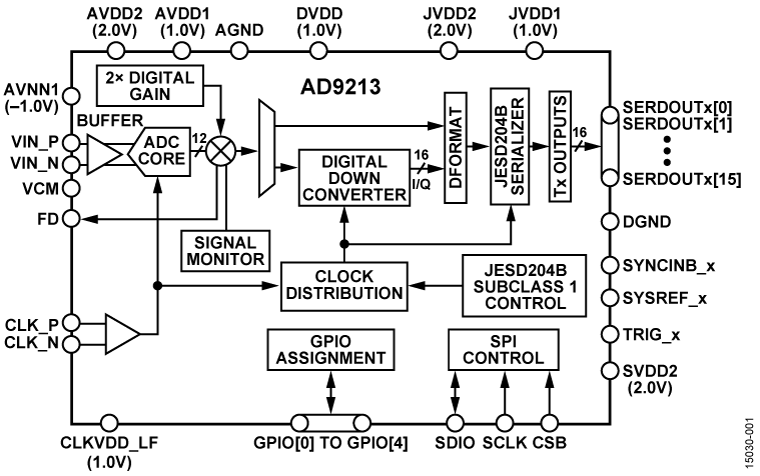

The AD9213 is a single, 12-bit, 6 GSPS/10.25 GSPS, radio frequency (RF) analog-to-digital converter (ADC) with a 6.5 GHz input bandwidth. The AD9213 supports high dynamic range frequency and time domain applications requiring wide instantaneous bandwidth and low conversion error rates (CER). The AD9213 features a 16-lane JESD204B interface to support maximum bandwidth capability.

The AD9213 achieves dynamic range and linearity performance while consuming <4.6 W typical. The device is based on an interleaved pipeline architecture and features a proprietary calibration and randomization technique that suppresses interleaving spurious artifacts into its noise floor. The linearity performance of the AD9213 is preserved by a combination of on-chip dithering and calibration, which results in excellent spurious-free performance over a wide range of input signal conditions.

Applications that require less instantaneous bandwidth can benefit from the on-chip, digital signal processing (DSP) capability of the AD9213 that reduces the output data rate along with the number of JESD204B lanes required to support the device. The DSP path includes a digital downconverter (DDC) with a 48-bit, numerically controlled oscillator (NCO), followed by an I/Q digital decimator stage that allows selectable decimation rates that are factors of two or three. For fast frequency hopping applications, the AD9213 NCO supports up to 16 profile settings with a separate trigger input, allowing wide surveillance frequency coverage at a reduced JESD204B lane count.

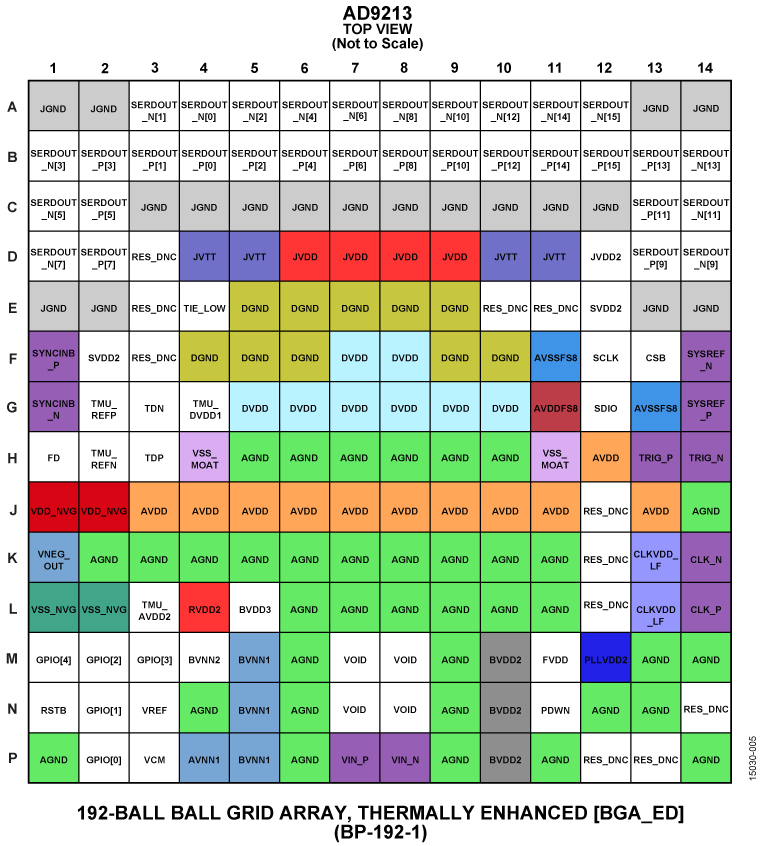

The AD9213 supports sample accurate multichip synchronization that includes synchronization of the NCOs. The AD9213 is offered in a 192-ball ball grid array (BGA) package and is specified over a junction temperature range of −20°C to +115°C.
