Analog Devices LTC2311-16 Product Info

• 5Msps Throughput Rate
• ±3LSB INL (Typ), ±8LSB INL Guaranteed
• Guaranteed 16-Bit, No Missing Codes
• 8V_P-P Differential Inputs with Wide Input Common Mode Range

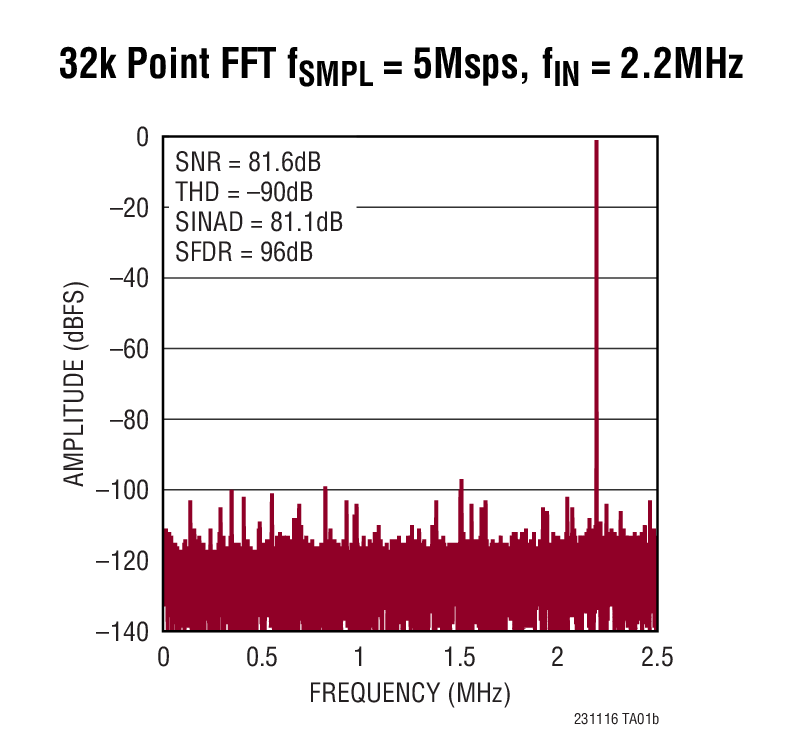

• 81dB SNR (Typ) at f_IN = 2.2MHz
• –90dB THD (Typ) at f_IN = 2.2MHz
• Guaranteed Operation –40°C to 125°C
• Single 3.3V or 5V Supply
• Low Drift (20ppm/°C Max) 2.048V or 4.096V Internal Reference with 1.25V External Reference Input
• 1.8V to 2.5V I/O Voltages
• CMOS or LVDS SPI-Compatible Serial I/O
• Power Dissipation 50mW at V_DD = 5V (Typ)

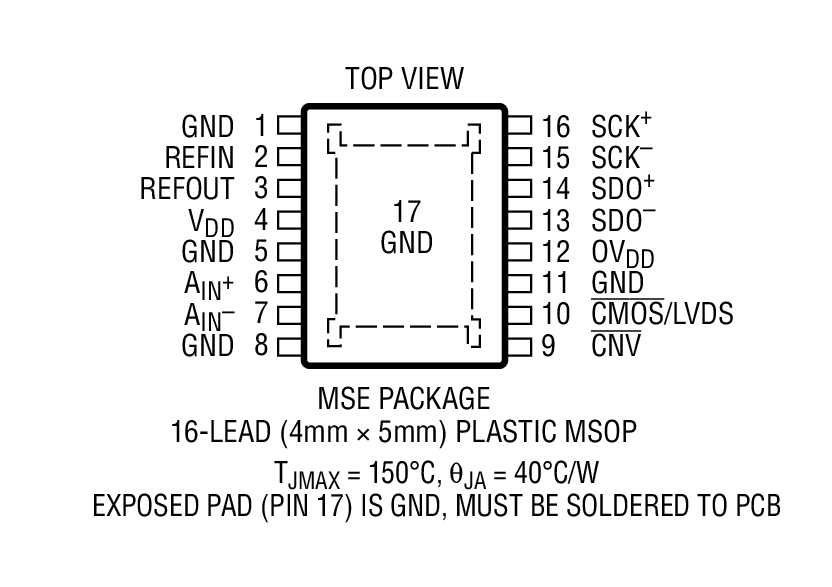

• Small 16-Lead (4mm × 5mm) MSOP Package

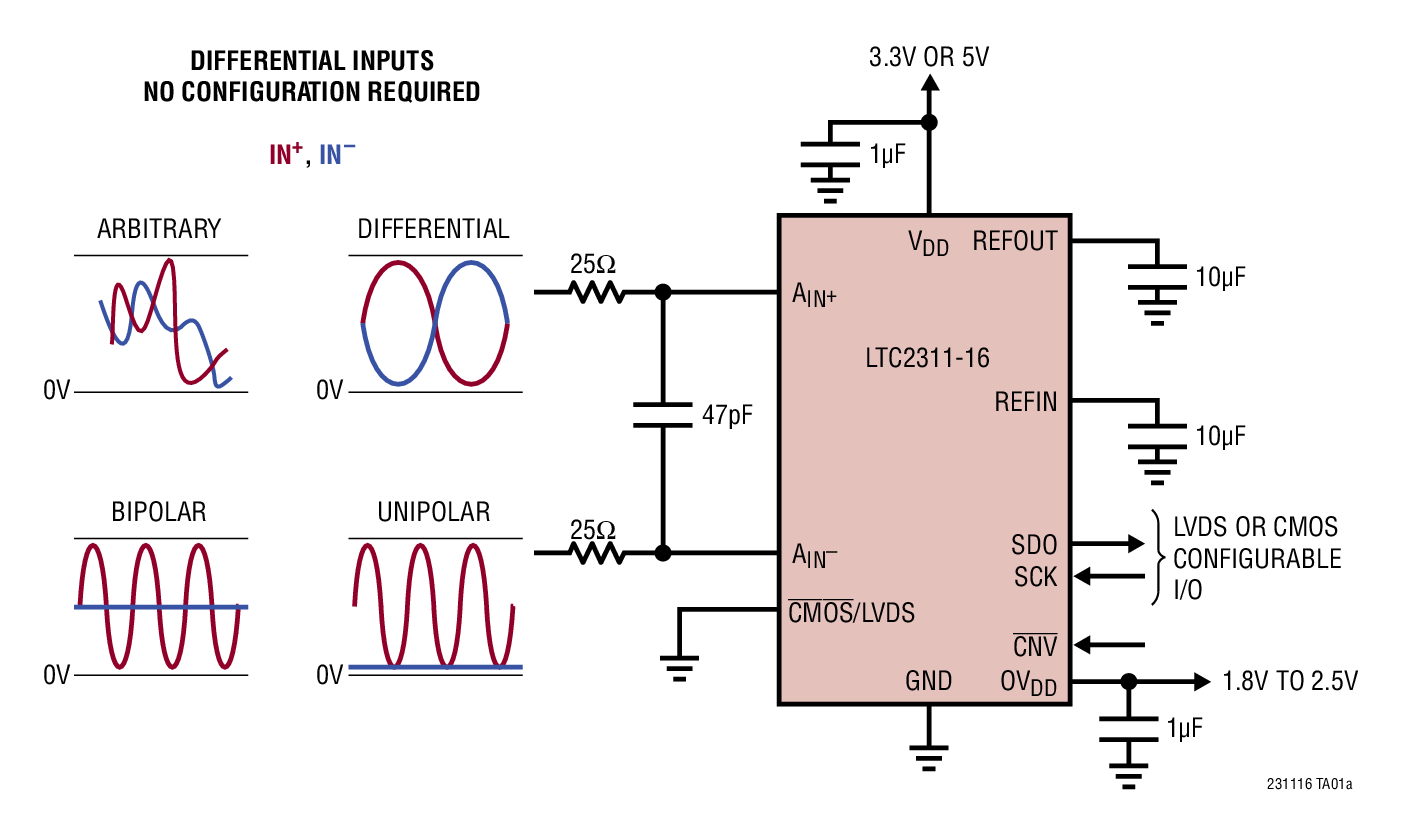

The LTC2311-16 is a low noise, high speed 16-bit successive approximation register (SAR) ADC with differential inputs and wide input common mode range. Operating from a single 3.3V or 5V supply, the LTC2311- 16 has an 8V_P-P differential input range, making it ideal for applications which require a wide dynamic range with high common mode rejection. The LTC2311-16 achieves ±3LSB INL typical, no missing codes at 16 bits and 81dB SNR typical.

The LTC2311-16 has an onboard low drift (20ppm/°C max) 2.048V or 4.096V temperature-compensated reference and provides an external 1.25V buffered reference input. The LTC2311-16 also has a high speed SPI-compatible serial interface that supports CMOS or LVDS. The fast 5Msps throughput with one-cycle latency makes the LTC2311-16 ideally suited for a wide variety of high speed applications. The LTC2311-16 dissipates only 50mW with a 5V supply and offers nap and sleep modes to reduce the power consumption to 5μW for further power savings during inactive periods.

Applications

• High Speed Data Acquisition Systems
• Communications
• Remote Data Acquisition
• Imaging
• Optical Networking
• Automotive
• Multiphase Motor Control
