Analog Devices MAX4892E Product Info

• ±15kV ESD Protected Per MIL-STD-883, Method 3015
• Single +3.0V to +3.6V Power-Supply Voltage
• Low On-Resistance (R_ON): 4Ω (typ), 6.5Ω (max)
• Ultra-Low On-Capacitance (C_ON): 8pF (typ)
• -23dB Return Loss (100MHz)
• -3dB Bandwidth (650MHz)
• Optimized Pin Out for Easy Transformer and PHY Interface
• Built-In LED Switches for Switching Indicators to Docking Station (MAX4892E)
• Low 450µA (max) Quiescent Current
• Bidirectional 8 to 16 Multiplexer/Demultiplexer
• Standard Pin Out, Matching the MAX4890 and MAX4892
• Space-Saving Lead-Free Packages
• 32-Pin, 5mm x 5mm, TQFN Package
• 36-Pin, 6mm x 6mm, TQFN Package

The MAX4890E/MAX4892E meet the needs of high-speed differential switching. The devices handle the needs of Gigabit Ethernet (10/100/1000) Base-T switching as well as LVDS and LVPECL switching. The MAX4890E/MAX4892E provide enhanced ESD protection up to ±15kV, and excellent high-frequency response, making the devices especially useful for interfaces that must go to an outside connection.

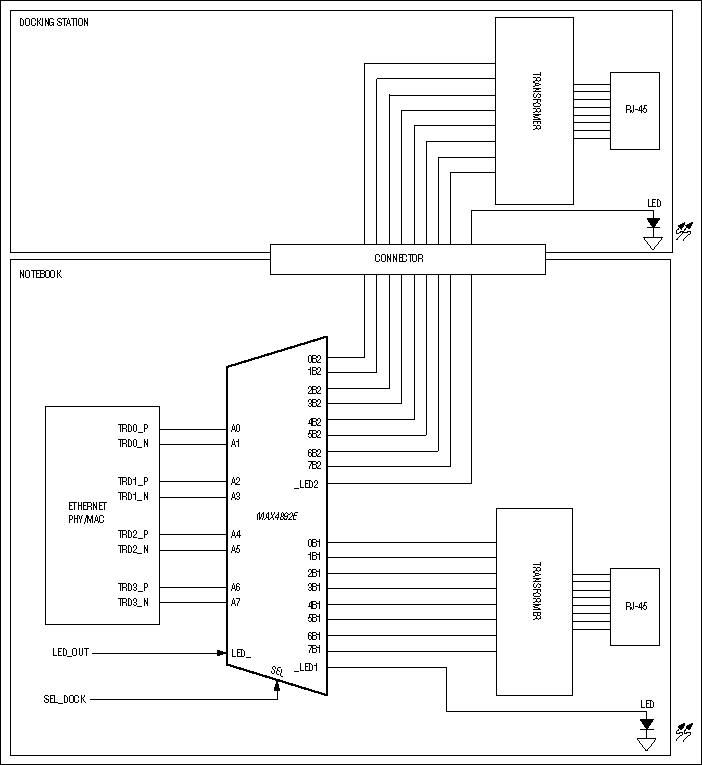

Both devices provide extremely low capacitance (C_ON), as well as low resistance (R_ON), for low-insertion loss and very wide bandwidth. In addition to the four pairs of DPDT switches, the MAX4892E provides LED switching for laptop computer/docking station use.

The MAX4890E/MAX4892E are pin-for-pin equivalents to the MAX4890/MAX4892 and can replace these devices for those applications requiring the enhanced ESD protection. Both devices are available in space-saving TQFN packages and operate over the standard -40°C to +85°C temperature range.

Applications

• Board-Level Redundancy Protection
• Notebooks and Docking Stations
• Servers and Routers with Ethernet Interfaces
• SONET/SDH Signal Routing
• T3/E3 Redundancy Protection
