MAX36051

PRODUCTION

DeepCover Security Manager with 128 Bytes of Nonimprinting Memory Single-Chip Solution Integrates Advanced Physical Security to Protect Against Physical and Environmental Tamperings

Analog Devices MAX36051 Product Info

10 February 2026 4

Features

128 Bytes of Nonimprinting Memory with High-Speed Erase
Two General-Purpose Tamper-Detect Comparators with Associated Reference
Latches State of All Tamper-Detect Comparators
Free-Running, 32-Bit Elapsed Time Counter
4-Wire-Compatible Interface
Programmable Glitch Filters
On-Chip, Programmable Temperature Sensor
System Power Monitor for Detection of Power Supply Attacks
Tamper-Interrupt Output
Integrated CPU Supervisor
Battery-Backup Controller
Programmable Ultra-Low Power Consumption
- 1.5µA at +25°C (typ)
3.0V to 3.6V Single-Supply Operation

Part details & applications

DeepCover^® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

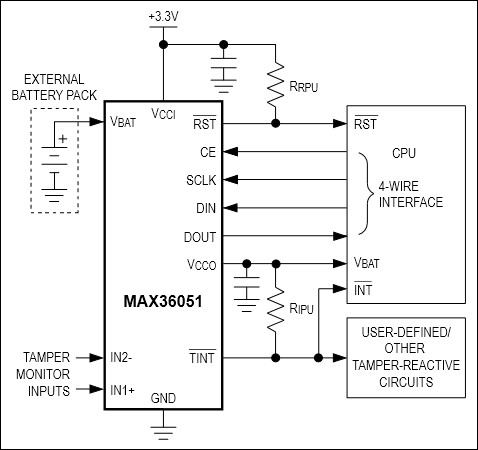

The DeepCover Security Manager (MAX36051) is a 4-wire-compatible security manager with 128 bytes of internal memory. This device is specifically intended to address the temperature and voltage monitoring requirements of the payment card industry (PCI) and other equipment where data protection and security are critical. The device incorporates a battery-backup controller, system power monitor, CPU supervisor, temperature sensor, and two tamper-detection comparator inputs for interface to external sensors, interlocks, or antitamper meshes. In the event of primary power failure, an external battery power source is automatically switched in to keep the tamper-detection circuitry alive.

Applications

Gaming
Industrial Controls and Monitoring
Lottery Terminals
Personal Computers
Secure USB Flash Memory Drivers
