Analog Devices MAX4730 Product Info

• Low 3.5Ω R_ON (+2.7V Supply)
• 0.45Ω R_ON Flatness (+2.7V Supply)
• 0.05Ω R_ON Match Between Channels (+2.7V Supply)
• Tiny SC70 and µDFN Packages
• -3dB Bandwidth: 300MHz
• Low On-Capacitance: 19.5pF
• 0.036% Total Harmonic Distortion
• Low Supply Current: 1nA
• +1.8V to +5.5V Single-Supply Operation

The MAX4729/MAX4730 single-pole/double-throw (SPDT) switches operate from a single supply ranging from +1.8V to +5.5V. These switches provide low 3.5Ω on-resistance (R_ON), as well as 0.45Ω R_ON flatness with a +2.7V supply. These devices typically consume only 1nA of supply current, making them ideal for use in lowpower, portable applications. The MAX4729/MAX4730 feature low-leakage currents over the extended temperature range, TTL/CMOS-compatible digital logic, and excellent AC characteristics.

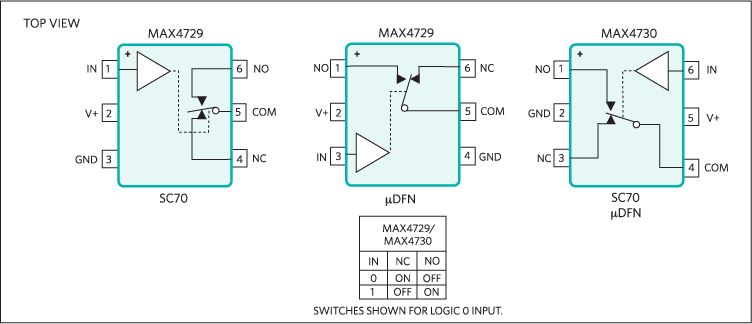

The MAX4729/MAX4730 are available in small 6-pin SC70 and 6-pin µDFN packages. The MAX4729/MAX4730 are offered in three pinout configurations to ease design. The MAX4729/MAX4730 are specified over the extended -40°C to +85°C temperature range.

Applications

• Audio/Video Signal Routing
• Battery-Operated Equipment
• Communications Circuits
• Low-Voltage Data-Acquisition Systems
• Relay Replacement
• Sample-and-Hold Circuits
