MAX4581L

PRODUCTION

Low-Voltage, CMOS Analog Multiplexers/Switches

Analog Devices MAX4581L Product Info

10 February 2026 3

Features

+3V Logic-Compatible Inputs (V_IH = 2.0V, V_IL = 0.8V)
Guaranteed On-Resistance: 80Ω with +12V Supply
Guaranteed 4Ω On-Resistance Match Between Channels
Guaranteed Low Off-Leakage Current: 2nA at +25°C
Guaranteed Low On-Leakage Current: 2nA at +25°C
+2V to +12V Supply Operation
TTL/CMOS-Logic Compatible
Low Crosstalk: -96dB (MAX4582L)
High Off-Isolation: -90dB
Tiny 4mm x 4mm Thin QFN Package
Pin Compatible with Industry-Standard 74HC4051/74HC4052/74HC4053 and MAX4051/MAX4052/MAX4053

Part details & applications

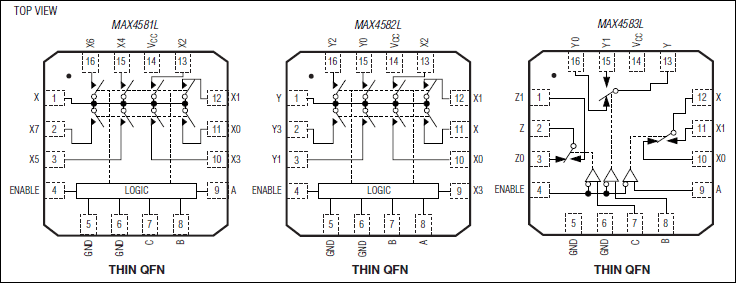

The MAX4581L/MAX4582L/MAX4583L are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (MAX4581L), two 4-channel multiplexers (MAX4582L), and three single-pole/double-throw (SPDT) switches (MAX4583L).

These CMOS devices operate with a +2V to +12V single supply. Each switch can handle rail-to-rail analog signals. Off-leakage current is only 2nA at +25°C.

All digital inputs have 0.8V to 2.0V logic thresholds to ensure TTL/CMOS-logic compatibility when using a +12V supply.

Applications

Audio/Video Signal Routing
Communications Circuits
Data Acquisition Systems
DSL Modems
