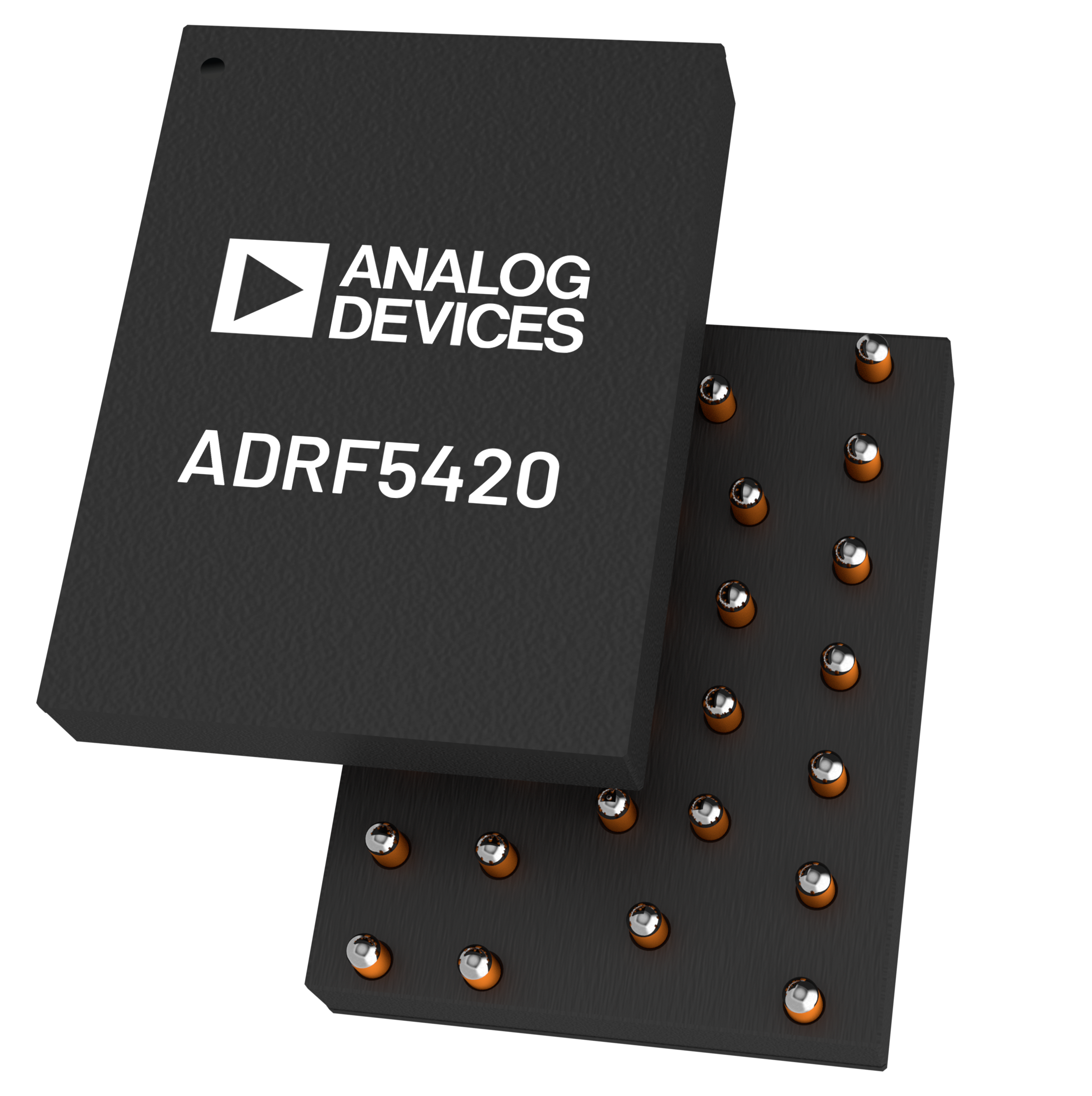

ADRF5420

PRE-RELEASE

Flip-Chip, Silicon SPDT Switch, 1 GHz to 90 GHz

Analog Devices ADRF5420 Product Info

10 February 2026 7

Features

Usable frequency range: 1 GHz to 90 GHz
Low insertion loss

1.2 dB typical to 40 GHz
1.7 dB typical to 67 GHz
3.0 dB typical to 90 GHz

High Isolation

40 dB typical up to 40 GHz
40 dB typical up to 67 GHz
30 dB typical up to 81 GHz

High input linearity

P0.1dB: 24 dBm typical
IP3: 45 dBm typical

High RF input power handling
- Through path: 24 dBm
- Hot switching: 21 dBm
No low frequency spurs
CMOS/LVTTL compatible
Fast RF switching time: 15 ns
RF settling time (50% V_CTRL to 0.1 dB of final RF output): 35 ns
Single-supply operation capability (VDD = 3.3 V , VSS = 0 V)
30-ball, 1.56 mm × 2.04 mm, bumped, bare die sales

Part details & applications

The ADRF5420 is a reflective, single-pole double-throw (SPDT) switch manufactured in the silicon process. This switch operates from 1 GHz to 90 GHz with better than 3.0 dB of insertion loss and 30 dB of isolation. The ADRF5420 has an RF input power handling capability of 24 dBm for the through path and 21 dBm for hot switching.

The ADRF5420 draws a low current of 130 μA on the positive supply of +3.3 V and 490 μA on negative supply of −3.3 V. The device employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5420 can also operate with a single positive supply voltage (VDD) applied while the negative supply voltage (VSS) is tied to ground. In this operating condition, the small signal performance is maintained while the switching characteristics, linearity, and power handling performance is derated. See Table 2 in the data sheet for more details.

The ADRF5420 RF ports are designed to match a characteristic impedance of 50 Ω. The ADRF5420 is a 30-ball, 1.56 mm x 2.04 mm, bumped bare die sales and can operate between −40°C to +105°C.

APPLICATIONS

Industrial scanners

Test and instrumentation

Cellular infrastructure: 5G mmWave

Military radios, radars, electronic counter measures (ECMs)

Microwave radios and very small aperture terminals (VSATs)
